| Item | Specification |
|---|---|
| Catalog Number | 20DC125A0EYNANANE |

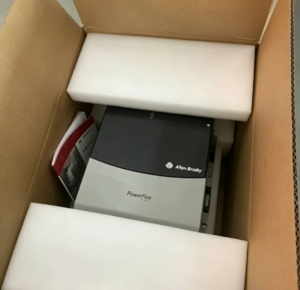

| Product Series | PowerFlex 700S Phase II AC Drive |
| Lifecycle Status | Discontinued |
| Input Voltage | 480 VAC, 3‑Phase |
| Rated Output Current | 125 A |
| Normal Duty Rating | 100 HP (75 kW) |
| Heavy Duty Rating | 75 HP (55 kW) |
| Frame Size | Frame 5 |
| Enclosure Rating | IP20 / NEMA Type 1, Conformal Coating |
| Human Interface Module | No HIM, blank plate |
| Braking Unit | Brake IGBT installed, without drive‑mounted brake resistor |
| EMC Filter | Second Environment Filter (CE 89/336/EEC) |
| Control Type | Phase II control, Expanded cassette |
| Feedback | Standard incremental encoder, second encoder support |
| DriveLogix Function | No DriveLogix, no embedded communication |
| Communication Module | No internal communication module |
| Output Frequency Range | 0‑500 Hz |
| Overload Capacity | 110% for 1 min; 150% for 3 sec intermittent |
| Motor Overload Protection | Class 10 (NEC Article 430) |
| Ambient Operating Temperature | 0 … +40 °C (32 … 104 °F) |
| Storage Temperature | ‑40 … +85 °C |
| Relative Humidity | 5‑95% non‑condensing |
| Protection Functions | Over‑voltage, under‑voltage, over‑current, over‑temperature, ground fault, short‑circuit protection |
| Certifications | CE, UL, c‑UL |
| Approx. Power Loss | 1420 W |
