| Rated Operational Voltage: |
Main Circuit 208 … 600 V AC |
| Rated Control Supply Voltage (Us): |
100 … 250 V AC |
| Rated Control Circuit Voltage (Uc): |
DC Operation 24 V |
| Rated Frequency (f): |
50/60 Hz |
| Main Circuit 50 / 60 Hz |
| Rated Operational Power – In-Line Connection (Pe): |
(400 V) 90 kW |
| (500 V) 110 kW |
| Rated Operational Current – In-Line Connection (Ie): |
175 A |
| Rated Operational Power – Inside Delta Connection: |
at 400 V 160 kW |
| at 500 V 200 kW |
| Rated Operational Current – Inside Delta Connection: |
300 A |
| Service Factor Percentage: |
115% |
| Overload Protection: |
Build-in electronic overload protection |
| Integrated Electronic Overload: |
Yes |
| Starting Capacity at Maximum Rated Current Ie: |
3xIe for 15s |
| Ramp Time: |
0 … 120 second [unit of time] |
| 1 … 120 second [unit of time] |
| Initial Voltage During Start: |
30 … 70 % |
| Step Down Voltage Special Ramp: |
100 … 30 % |
| Current Limit Function: |
1.5 … 7xIe |
| Switch for Inside Delta Connection: |
Yes |
| Run Signal Relay: |
Yes |
| By-pass Signal Relay: |
Yes |
| Fault Signal Relay: |
Yes |
| Overload Signal Relay: |
Yes |
| Analog Outputs: |
0…10 volts |
| 0…20 mA |
| 4…20 mA |
| Signal Indication Ready to Start/Standby ON (LED): |
Green |
| Signal Indication Protection (LED): |
Yellow |
| Signal Indication Fault (LED): |
Red |
| Number of Starts Per Hour at 3.5*Ie for 7 sec. 50% ON Time 50% OFF Time: |
30 |
| Communication: |
FiledBusPlug(Standard) |
| Degree of Protection: |
acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00 |
| Terminal Type: |
Main Circuit: Bars |
| Connecting Capacity Main Circuit: |
Hole Diameter 10.2 mm |
| Width and Thickness 20×5 mm |
| Connecting Capacity Control Circuit: |
Rigid 1 x 2.5 mm² |
| Rigid 2 x 1.5 mm² |
| Connecting Capacity Supply Circuit: |
Rigid 1 x 2.5 mm² |
| Tightening Torque: |
Control Circuit 0.5 N·m |

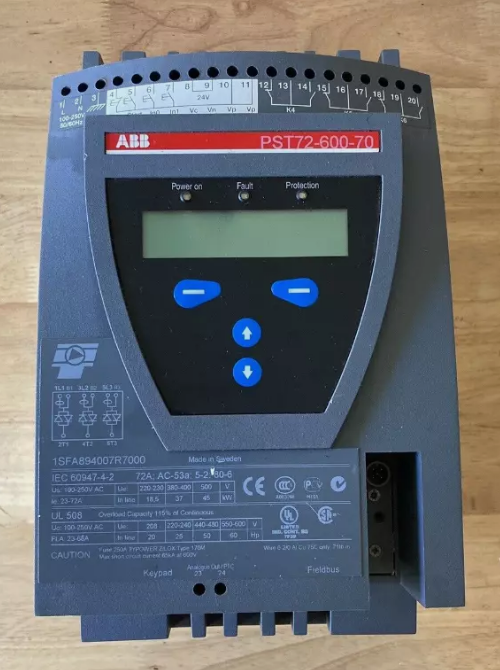

| Main Circuit 28 N·m |
| Supply Circuit 0.5 N·m |
| Product Main Type: |
PST175 |
| Ambient Air Temperature: |
Operation 0 … +50 °C |
| Storage -25 … +70 °C |
| Container Information |
| Product Net Weight: |
21.5 kg |
| Product Net Depth / Length: |
270 mm |
| Product Net Height: |
420 mm |
| Product Net Width: |
360 mm |
