| Parameter Category | Detailed Specification |
|---|---|

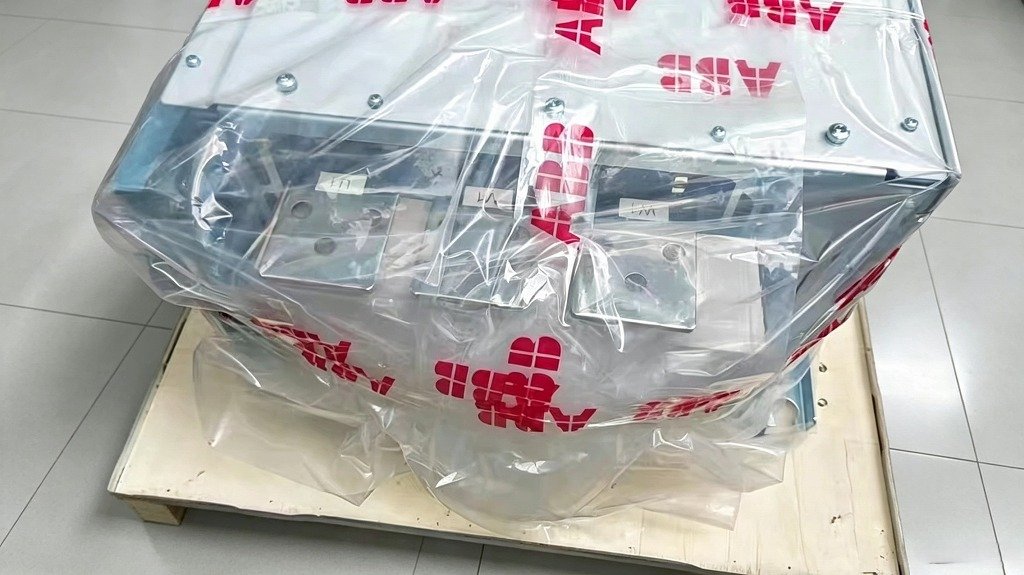

| Model | ACS800-04-0610-3 |
| Product Series | ACS800-04 Single Drive Module |
| Input Voltage | Three-phase AC 380–415 V (nominal 400 V) |
| Input Frequency | 50/60 Hz |
| Rated Output Current (No-overload) | |
| Max Output Current (No-overload) | |
| Rated Power (No-overload Use) | |
| Rated Current (Light-overload Use) | |
| Rated Power (Light-overload Use) | |
| Rated Current (Heavy-duty Use) | |
| Rated Power (Heavy-duty Use) | |
| Noise Level | 73 dBA |
| Heat Dissipation | 13000 W |
| Air Flow | 3120 m³/h |
| Control Method | Direct Torque Control (DTC, standard) |
| Protection Class | IP00 (R8 size) |
| Frame Size / Dimensions | 1×D4 + 2×R8i |
| Cooling Method | Forced air cooling |
| Brake Chopper | Optional |
| Standard Interfaces | Standard I/O, optional fieldbus (Profibus, DeviceNet, etc.) |
| Ambient Temperature | Operation: -15 to +50 ℃; derating 1% per °C above 40 ℃ up to 50 ℃ |
| Relative Humidity | 5%–95%, non-condensing |
| Altitude | No derating up to 1000 m; derating required above 1000 m up to 4000 m |
