Technical specifications for 1769-L32E

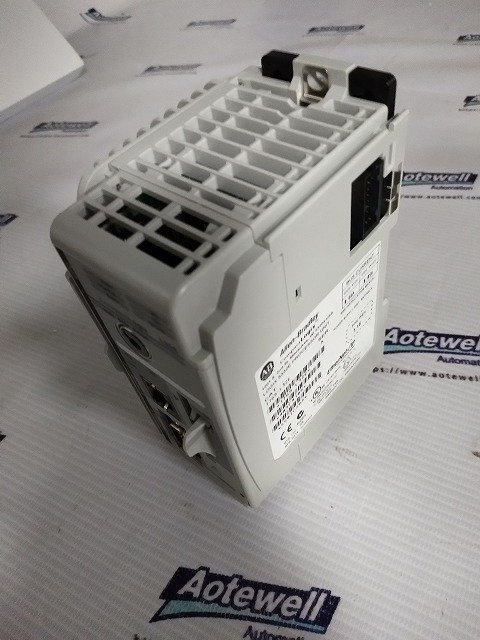

The Allen-Bradley 1769-L32E is a 1769 CompactLogix controller from the 5370 CompactLogix family. This controller has embedded 750Kbytes memory, One (1) Ethernet and One (1) RS232 communication port. It supports up to Sixteen (16) Compact I/O modules and supports up to Three (3) expansion banks.
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Brand | Allen-Bradley |
| Part Number/Catalog No. | 1769-L32E |
| Product Line | CompactLogix |
| Product Type: | Programmable Automation Controller |
| Module Type | Processor Module |
| Communication | Ethernet/IP |
| Communication ports: | 1 RS232; 1 Ethernet |
| Supported Protocols: | DH485; DF1; ASCII; EtherNet |
| Memory | 750 KB |
| Maximum number of I/O modules supported: | 16 Modules |
| Shipping Weight | 2 pounds |
| Maximum number of I/O banks supported: | 3 banks |
| Shipping Dimensions | 8 x 8 x 5 inches |
| Power supply distance rating: | 4 |
| Series | A and B |
| Battery | 1747-BA |
| Programming cable: | 1747-CP3 / 1756-CP3 |
| Wire Type | Copper-90 degrees Celsius |
| Wire Size (Solid) | 22 to 14 AWG |
| Vibration: | Operating: 10 to 500 Hz, 5G, 0.030 in. peak-to-peak |
| Modules Supported | 16 I/O Modules |
| Operating Temperature: | 0° to +60°C (+32° to +140°F) |
| Wire Size (Stranded) | 22 to 16 AWG |
| Programming Language: | Relay ladder, Structured Text, Function block, SFC |
| UPC | 10612598313935 |
