2711-K14C9

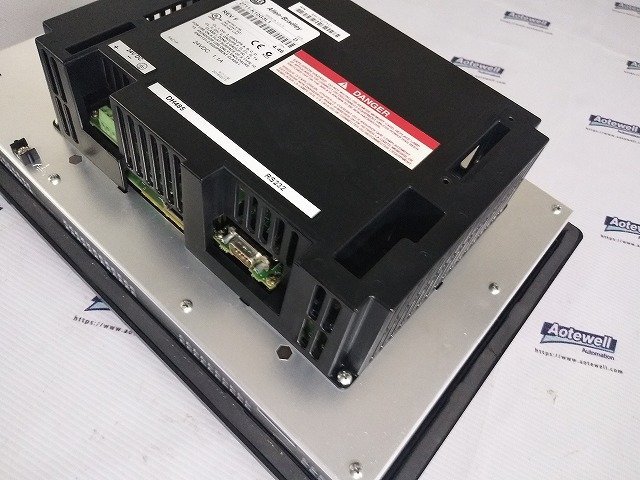

The 2711-K14C9 operator interface terminal is manufactured by Allen-Bradley/Rockwell Automation as a member of the Panelview 1400 series of standard operator terminals. It supports full color graphics and it has a display screen which is 14 inches wide. The 2711-K14C9 operator interface terminal operates on AC power and it has a voltage range between 85 and 264 Volts AC. The communication port built into this terminal is an RS-232 and DH-485 port. The 2711-K14C9 operator interface terminal has a keypad as its control and input option.
| Manufacturer | Rockwell Automation |
| Brand | Allen-Bradley |
| Part Number/Catalog No. | 2711-K14C9 |
| Power Type | AC |
| Supply Voltage Limit | 85-264 Volts; 43-63 Hertz |
| Power Consumption | 200 VA max |
| Comm Port | RS-232 (DH-485) |
| Total Application Flash Memory | 1008 Kbytes |
| Operating Shock | 15 g |
| Non-Operating Shock | 30 g |
| Operating Temperature | 32-131 F (0-55 C) |
| Dimensions | 13.97 x 19.0 x 15.53 in (355 x 483 x 394 mm) |
| Display Dimensions | 10.0 x 7.5 in (255 x 191 mm) |
| Weight | 44.75 lbs (20.3 kg) |
| Method of Input | Keypad |
