1756IF6I | 1756-IF6I
I/O Module, ControlLogix, Individually Isolated Inputs, 6 Channel, 24 Volt DC, 100 mA

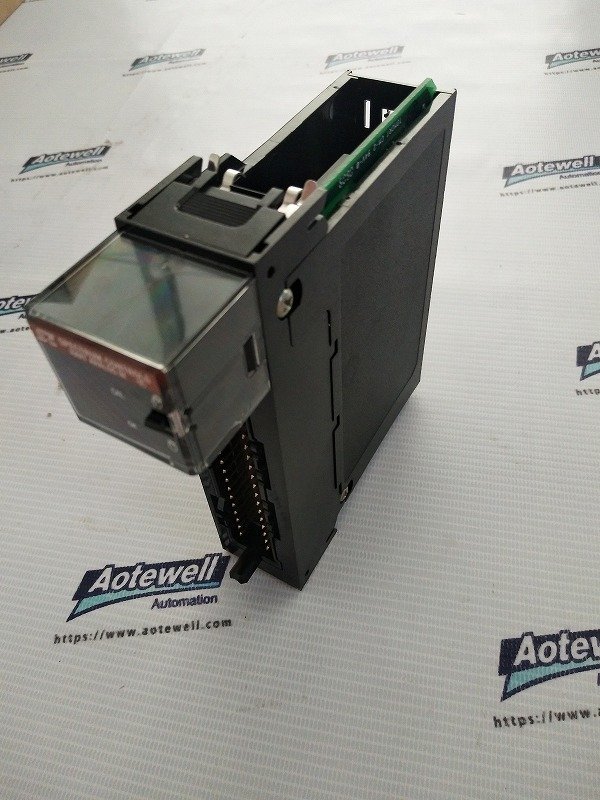

Allen-Bradley 1756-IF6I ControlLogix Isolated Analog Input Module, Current/Voltage, 6 Point (20 Pin)
| Brand | Allen-Bradley |
| Part Number/Catalog No. | 1756-IF6I |
| Series | ControlLogix |
| Module Type | Analog Input |
| Inputs | 6-Points, Isolated |
| Conversion Method | Sigma-Delta |
| Data format | Integer mode (left justified, 2 s complement) IEEE 32-bit floating point |
| Input signal Range | ±10.5V, 0 -10.5V, 0-5.25V and 0-21 mA |
| Input Resolution | 16 bits 10.5V: 343 ?V/bit 0…10.5V: 171 ?V/bit 0…5.25V: 86 ?V/bit 0…21 mA: 0.34 ?A/bit |
| Backplane Current (5Volts) | 250 mA |
| Backplane Current (24Volts) | 100 milliamps |
| Power Dissipation (Max) | Voltage: 3.7 W Current: 4.3 W |
| UPC | 10612598164643 |
