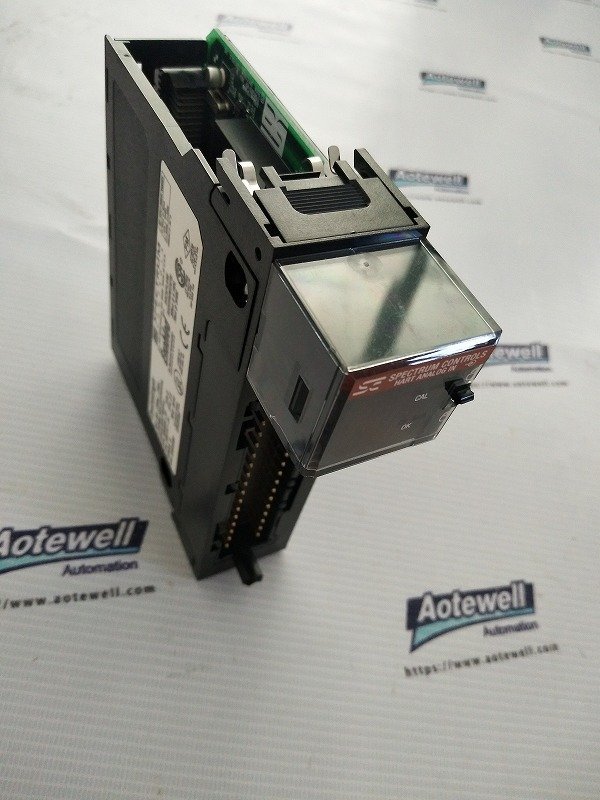

1756IF8H | 1756-IF8H
I/O Module, ControlLogix, Analog Hart Interface, Input, 8 Channel, Differential Voltage or Current
Input Module,ControlLogix,Analog,8 Point, Differential Inputs,HART Protocol,Current and Voltage
| Brand | Allen-Bradley |
| Part Number/Catalog No. | 1756-IF8H |
| Manufacturer | Rockwell Automation |
| Series | ControlLogix |
| Brand | Allen-Bradley |
| Module Type | Hart Analog Input Module |
| Series | ControlLogix |
| Channels | 8 Differential |
| Module Type | Analog Input Module with HART capability |
| Backplane Current (5.1 Volts DC) | 300 milliamps |
| No. of Inputs | Eight (8) Differential input channels |
| Backplane Current (24 Volts) | 70 milliamps |
| Input signal | Current: 0-20 mA; 4-20 mA Voltage: +/-10VDC, 0-5 VDC, 1-5 VDC and 0-10 VDC |
| Power Dissipation (Max) | 3.21-4.01 Watts |
| Resolution | 16 – 21 Bits |
| Thermal Dissipation | 13.7 BTU per hour |
| Accuracy | Voltage: 0.1% of range Current: 0.3% of range |
| Resolution | 16-21 bits |
| Data Format: | Integer mode (left justified, 2 s complement) IEEE 32-bit floating point |
| Enclosure | Open |
| Input conversion method | Successive approximation |
| Output conversion method | R-Ladder DAC, monotonicity with no missing codes |
| Removable terminal block | 1756-TBCH; 1756-TBS6H |
| Current Draw | 300 mA @ 5.1 VDC and 135 mA @ 24 VDC. |
| Open circuit detection time | Positive full scale reading within 5 s |
| Overvoltage protection, max | Voltage: 30V DC Current: 8V DC |
| UPC | 10612598345479 |
