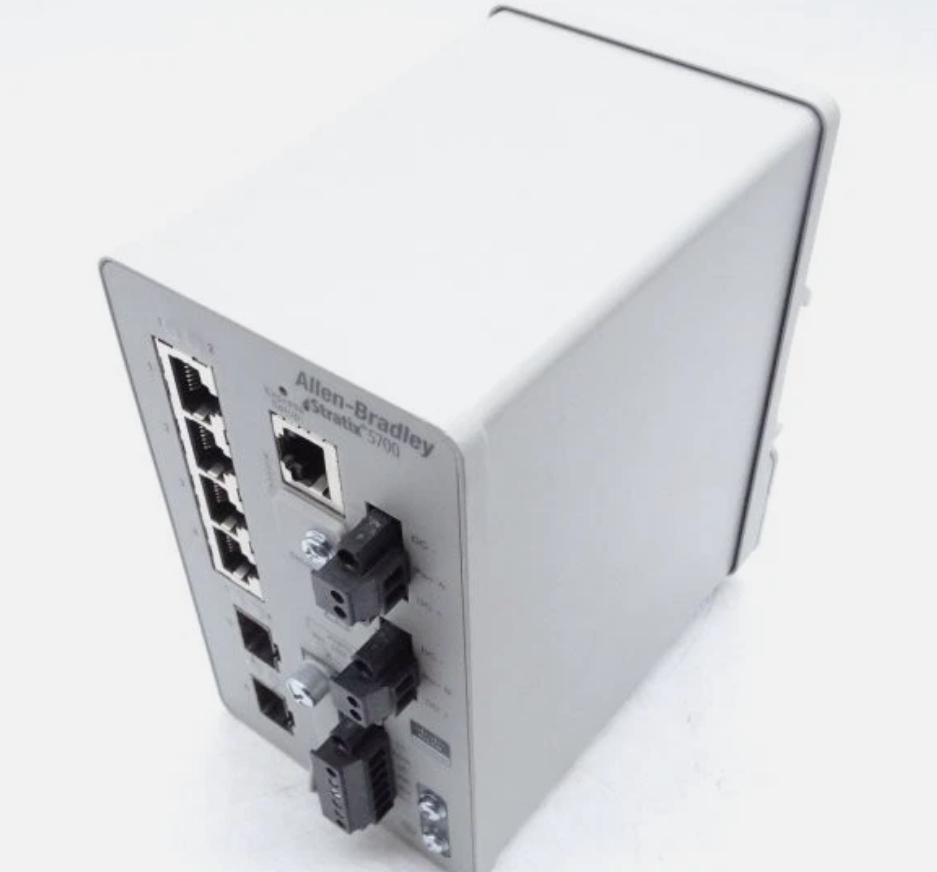

1783-BMS06SGA
Stratix 5700 6 Port Managed Switch
| Parameter | Specification |
| Catalog Number | 1783-BMS06SGA |
| Product Type | Stratix 5700 Managed Industrial Switch |
| Total Ports | 6 |
| Copper Ports | 4 x 10/100 Mbps (RJ45) |
| Fiber/SFP Ports | 2 x 10/100/1000 Mbps (Gigabit SFP Slots) |
| Software Feature Set | Full (Layer 2 switching) |

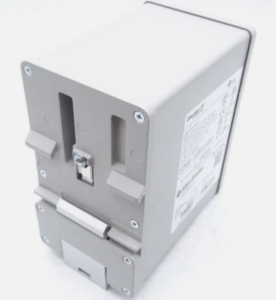

| Mounting | DIN Rail (Top hat rail) |
| Power Input | 12 – 48V DC (Redundant dual inputs) |
| Max Power Consumption | 15 W |
| Enclosure Rating | IP30 (Open-style) |
| Operating Temperature | -40 °C to 60 °C (-40 °F to 140 °F) |
| Dimensions (HxWxD) | Approx. 12.95 cm x 7.48 cm x 11.67 cm (5.1 x 2.94 x 4.59 in) |
| Weight | Approx. 1.11 kg (2.45 lbs) |
| Alarm Relay | Yes (1 A at 30V DC / 0.5 A at 48V DC) |
| Management | Yes (Cisco IOS CLI / Studio 5000 Integration) |
| Shock (Operating) | 30 g |
| Vibration (Operating) | 2 g (10–500 Hz) |
