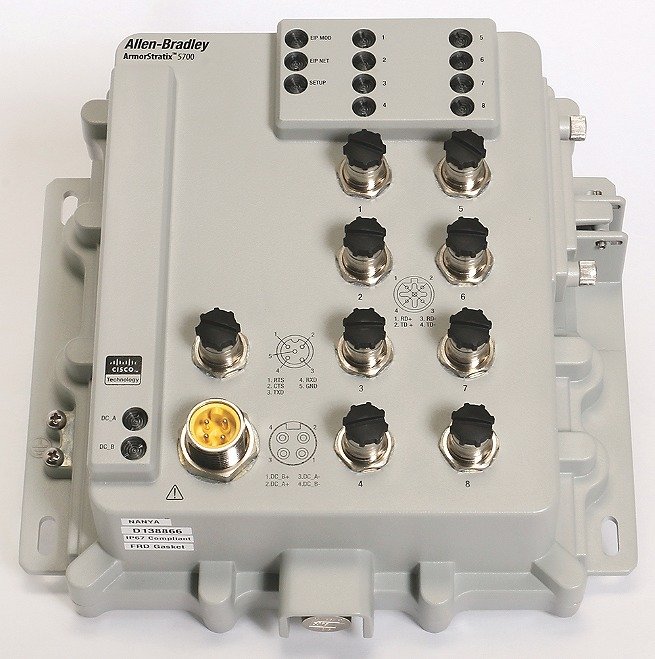

1783-ZMS8TA
ArmorStratix 5700 8 port managed switch
| Allen-Bradley 1783-ZMS8TA Specification Sheet | |
| Category | Specification |
| Product Line | ArmorStratix 5700 |
| Type | Managed Ethernet Switch |
| Mounting | DIN Rail |
| Total Ports | 8 |
| Port Type | 8 x Fast Ethernet (10/100 Mbps) Copper Ports |
| Fiber Ports | None (All ports are copper) |
| Power over Ethernet (PoE) | No (Non-PoE model) |
| Housing / Enclosure | IP67 Rated (Protected against dust and submersion in water) |
| NEMA Rating | NEMA Type 4 |
| Operating Temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
| Ambient Temperature | 60 °C (140 °F) |
| Input Voltage | 12…48V DC (Non-PoE) |
| Current Draw | 1.5 A (at 24V DC nominal) |
| Dimensions (H x W x D) | Approx. 243.8 x 237.49 x 86.3 mm (9.6 x 9.35 x 3.4 in.) |
| Weight | Approx. 3.26 kg (7.19 lb) |
| Software Features | Full Cisco IOS, VLAN, QoS, IGMP Snooping, SNMP |
| Network Address Translation (NAT) | No (Not supported on this specific model) |
| CIP Sync (IEEE 1588) | No (Not supported on this specific model) |
| Key Feature | Integrated Device Level Ring (DLR) support for network redundancy |
| Wire Gauge (Power) | 16 AWG (600V, 105 °C) stranded copper wire |
| Torque (Power ports) | 0.23 N•m (2.0 in•lb) |
