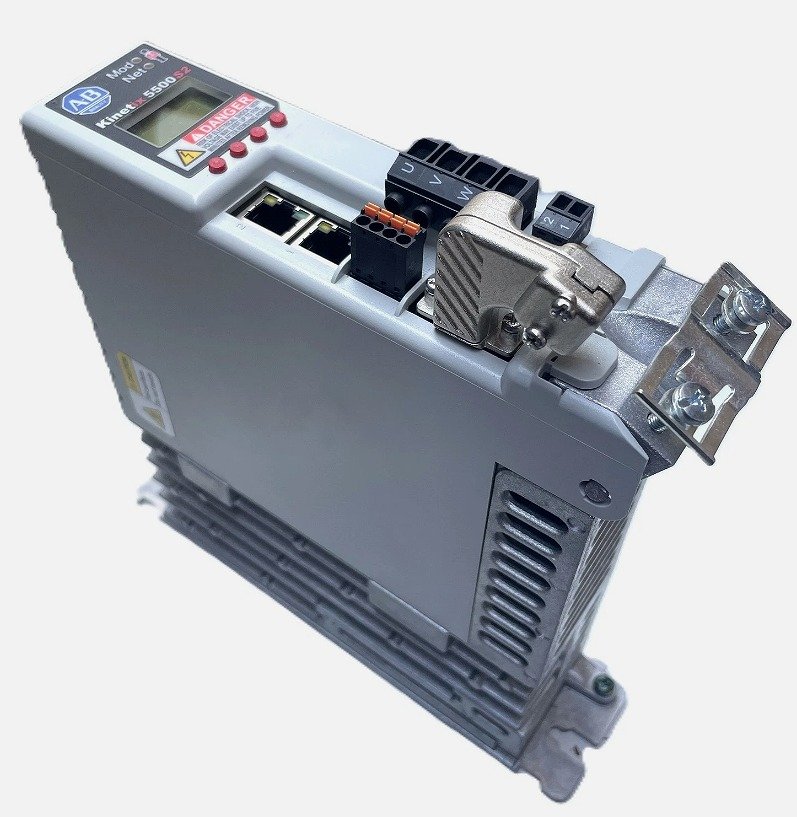

2198-H008-ERS2
Allen-Bradley
Kinetix 5500 Servo Drive, 6.3 Amp peak current output, 1 and 3 phase 190 – 528 VAC input
| Technical specifications for 2198-H008-ERS2 | |
| Manufacturer | Rockwell Automation |
| Brand | Allen-Bradley |
| Input Voltage | 195…264V rms, single-phase (240V nom); 195…264V rms, three-phase (240V nom); 324…528V rms, three-phase (480V nom); |
| Continuous Output Current (0-peak) | 3.5 A |
| Part Number/Catalog No. | 2198-H008-ERS2 |
| Product Category | Kinetix 5500 |
| Continuous Output Power | 0.5 KW at 195…264V rms, single-phase; 0.8 KW at 195…264V rms, three-phase; 1.6 kW at 324…528V rms, three-phase; |
| Continuous Output Current (rms) | 2.5 A |
| Peak Output Current (0-peak) | 8.8 A |
| Peak Output Current (rms) | 6.25 A |
| Velocity Loop | 300 Hz |
| Current Loop | 1000 Hz |
| Efficiency | 0.97 |
| Short-circuit current rating | 200,000 A (rms) symmetrical |
| Internal shunt power | 30 W |
| Safe Torque Off (STO) Feature | Integrated |
| Hardwired Safety | No |
| Frame Size | Frame Size 1 |
| Peak Output Current | 6.3 Amperes |
| Nom Drive Voltage | 240 V (Single Phase); 240/480 V (Three Phase) |
| Integrated Safety Over Ethernet/IP | Yes |
| Dimensions | 1.97 x 8.90 x 8.46 in (50 x 226 x 215 mm) |
| Weight | 3.0 lbs (1.4 kg) |
| UPC | 885630902661 |
