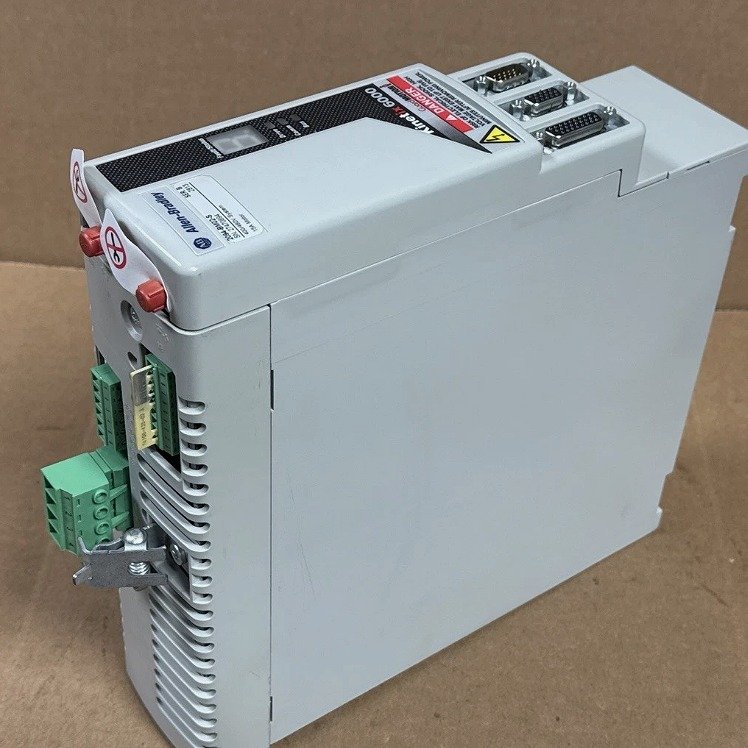

2094, Kinetix 6200 / 6500 Modular Multi-axis Servo Drive
2094-BMP5-M
| Technical specifications for 2094-BMP5-M | |
| Manufacturer | Allen Bradley |
| Category | Drives |
| Product Line | Kinetix 6200 |
| Part Number | 2094-BMP5-M |
| UPC | 884951092525 |
| Weight | 6.38 lbs (2.89 kg) |
| Product Description | Axis Module |
| DC Input Voltage | 650 VDC |
| Velocity loop | 500 Hz |
| Current loop | 1300 Hz |
| Control input voltage | 95-264 VAC, 1-phase |
| Output voltage | 0…480V rms, 3-Phase |
| Output frequency | 0-800 Hz |
| Output current, continuous (rms) | 2.8 Amperes |
| Operating Temperature | 32-122 F (0-50 C) |
| Output Current | 4 Amperes |
| Power Module | Axis Module |
| Max Bus Capacitance | N/A |
| Wattage | 1.8 kWatts |
| Voltage Rating | 460 Volt (AC) |
| Nom Drive Voltage | 360-480 Volts (3 Phase) |
| Output current, continuous (0-pk) | 4.0 Amperes |
| Peak current (rms) | 7.0 Amperes |
| Peak current (0-pk) | 9.9 Amperes |
| Output Power | 1.8 kW |
| Maximum short circuit current | 200,000 Amperes |
