22B-D2P3N104

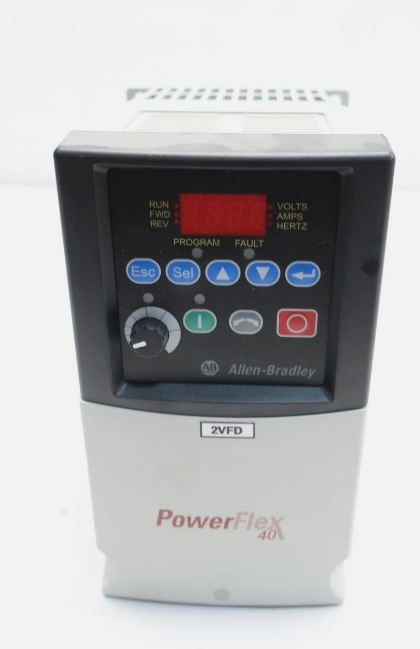

ALLEN-BRADLEY PowerFlex 40 AC Drive, 380…480V AC, 3PH, 2.3 Amps, 0.75 kW, 1 HP,Frame Size B, Panel Mount – IP20, NEMA/UL Type Open, LED Display, Digital Keypad, No CE Compliant Filter, RS485
| Allen-Bradley 22B-D2P3N104 Technical Datasheet | |
| Parameter | Specification |
| Manufacturer | Allen-Bradley (Rockwell Automation) |
| Product Line | PowerFlex 40 |
| Part Number | 22B-D2P3N104 |
| Drive Type | Adjustable Frequency AC Drive (VFD) |
| Input Voltage | 342–528V AC (Typical 380-480V), 3-Phase |
| Input Current | 3.2 Amperes |
| Input Frequency | 48–63 Hz |
| Output Voltage | 0–460V AC, 3-Phase |
| Output Current | 2.3 Amperes (Continuous) |
| Motor Power Rating | 0.75 kW (1.0 Horsepower) |
| Output Frequency | 0–400 Hz |
| Frame Size | B (Note: Some retailers list it as A, but official specs indicate B) |
| Enclosure Rating | IP20 / NEMA UL Type Open |
| Mounting | Panel Mount or DIN Rail |
| Control Method | Sensorless Vector Control, V/Hz |
| Communication | Embedded RS-485 (DSI/Modbus RTU) |
| Keypad / HIM | Fixed LED Keypad (Digital Potentiometer) |
| Dynamic Braking | Standard (Internal Brake IGBT) |
| EMC Filter | Without CE Compliant Filter |
| Digital Inputs | 3 Fixed (Start/Stop/Rev), 4 Fully Programmable |
| Analog Inputs | 2 Unipolar (0-10V/4-20mA), 1 Bipolar (+/-10V) |
| Relay Output | 1 Form C (N.O./N.C.) Dry Contact |
| Optocoupler Output | 2 Programmable Digital Outputs |
| Analog Output | 1 Channel |
| Overload Protection | Class 10: 150% for 60 sec, 200% for 3 sec |
| Overcurrent Trip | 300% Instantaneous Fault, 200% Hardware Limit |
| Operating Temp | -10°C to +50°C (14°F to 122°F) |
| Dimensions (HxWxD) | Approx. 180 x 100 x 136 mm (7.09 x 3.94 x 5.35 in) |
| Weight | Approx. 1.81 kg (4.0 lbs) |
