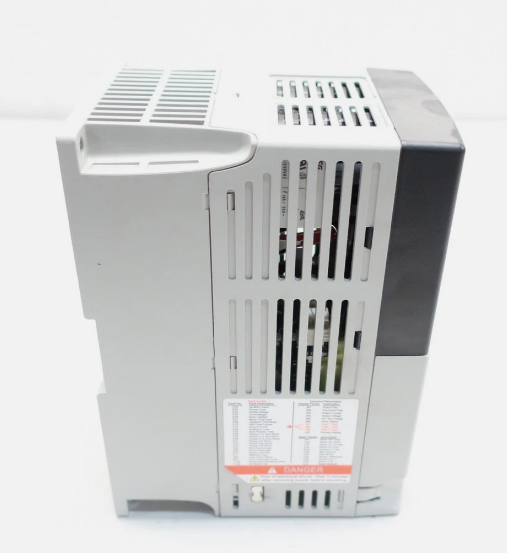

22B-D6P0N104
PowerFlex 40 AC Drive, 380…480V AC, 3PH, 6 Amps, 2.2 kW, 3 HP,Frame Size B, Panel Mount – IP20, NEMA/UL Type Open, LED Display, Digital Keypad, No CE Compliant Filter, RS485
| Technical Datasheet: 22B-D6P0N104 | ||
| Parameter | Specification | Notes / Conditions |
| Manufacturer | Rockwell Automation | Allen-Bradley brand |
| Series | PowerFlex 40 | Compact AC Drive |
| Part Number | 22B-D6P0N104 | |
| Product Type | Adjustable Frequency Drive (VFD) | |
| Input Voltage | 380 – 480V AC (3-Phase) | 342 – 528V AC operating range |
| Input Phases | 3 | |
| Output Current | 6.0 A | Rated |
| Power Rating | 2.2 kW | |
| Horsepower | 3 HP | @ 480V |
| Output Frequency | 0 – 400 Hz | Adjustable |
| Control Method | V/Hz, Sensorless Vector Control | |
| Overload Capacity | 150% for 60 seconds, 200% for 3 seconds | Class 10 protection |
| Enclosure Rating | IP20 / NEMA UL Type Open | Panel mount |
| Frame Size | B | |
| Interface | LED Keypad (Integral) | |
| Communication | RS-485 | Embedded port |
| Braking | Internal IGBT | Dynamic braking capable |
| Dimensions (H x W x D) | 180 x 100 x 136 mm | Approx. 7.09 x 3.94 x 5.35 in |
| Weight | 2.2 kg | Approx. 4.9 lbs |
| Ambient Temp (Operational) | -10 °C to +50 °C | 14 °F to 122 °F |
