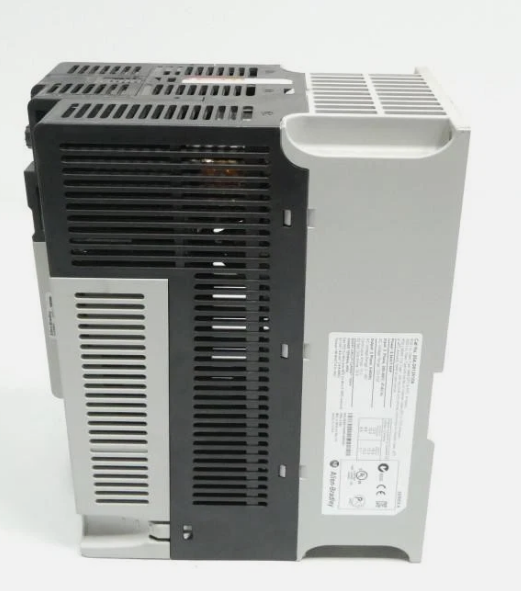

25A-D013N104
Allen-Bradley
PowerFlex 40P,Drive, Variable, 380-480VAC, 5.5kW, 7.5HP, 13A, Normal & Heavy Duty
| Technical specifications for 25A-D013N104 | |
| Output Current | 13.0 A |
| Brand | Allen-Bradley |
| Manufacturer: | Rockwell Automation / Allen-Bradley |
| Product Family: | PowerFlex 40P |
| Input Voltage: | 323-528 VAC |
| Input Phase: | 3-Phase |
| Input Current: | 15.4 A |
| Output Voltage: | 0-460VAC |
| Output Power: | 7.5 kW (5.5 HP) |
| I/O: | Discrete Inputs: Five (5) Sink / Source Discrete Outputs: One (1) Form C Contacts Analog Input: One (1) Analog Input 0-10VDC; 0- 20mA Analog Output: One (1) Analog Input 0-10VDC; 0- 20mA (For Series B drive) |
| Installation: | Panel Mount / DIN Rail |
| Enclosure Rating: | IP20 / NEMA UL Type Open |
| Built-in communication port: | RS485 |
| Optional communication protocols: | Ethernet I/P; DeviceNet; ProfiBus DP |
| Part Number/Catalog No. | 25A-D013N104 |
| Series | PowerFlex 523 |
| Voltage | Three Phase, 480 VAC |
| Enclosure Type | IP20 NEMA / Open Type |
| Interface Module | Standard |
| Frame Size | Frame C |
| EMC Filtering Option | No Filtering |
| UPC | 885630702537 |
