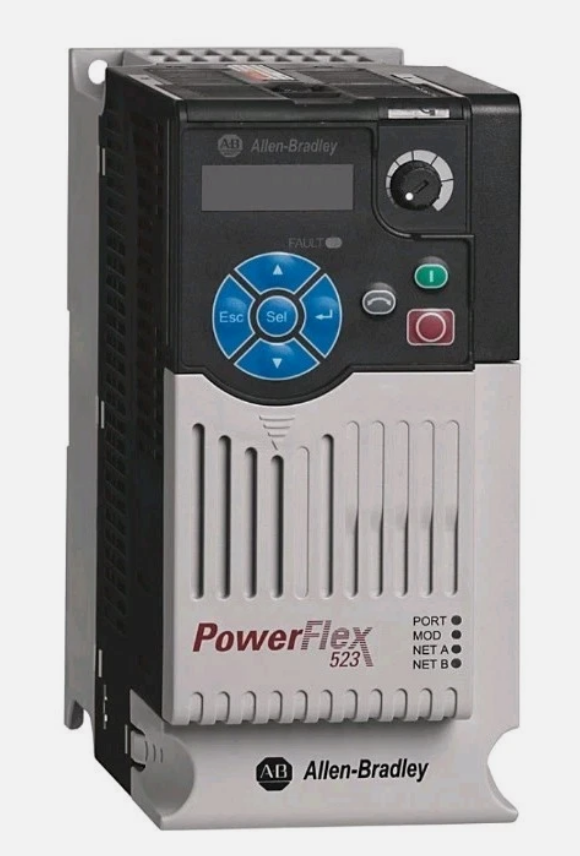

25A-D017N104
PowerFlex 523 AC Drive, 380…480V AC, 3 Phase, 17 Amps, 10 Hp, 7.5 kW Normal Duty; 10 Hp, 7.5 kW Heavy Duty, Frame C, IP20 NEMA / Open Type, No Filter
PowerFlex 523
| Technical specifications for 25A-D017N104 | |
| Brand | Allen-Bradley |
| Part Number/Catalog No. | 25A-D017N104 |
| Output Current | 17 A |
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Input Voltage: | 380-480 VAC |
| Input Phase: | 3-Phase |
| Output Voltage: | 0-460VAC |
| Output Power: | 7.5 kW or 10.0 HP |
| I/O: | Discrete Inputs: Five (5) Sink / Source Discrete Outputs: One (1) N.O.; One (1) N.C. Contacts; Analog Input: Two (2) Analog Input 0-10VDC; 0- 20mA Analog Output: One (1) Analog Input 0-10VDC; 0- 20mA |
| Installation: | Panel Mount / DIN Rail |
| Zero Stacking: | Supported |
| Enclosure Rating: | IP20 / NEMA UL Type Open |
| Control Method: | Volts per Hertz (V/Hz), Sensorless Vector Control (SVC), Closed loop velocity vector control, and Permanent Magnet motor control. |
| PointStop Technology: | Integrated |
| Integrated safety: | Safe-Torque Off (STO) functionality |
| Built-in communication port: | RS485 |
| Series | PowerFlex 523 |
| Voltage | Three Phase, 480 VAC |
| Enclosure Type | IP20 NEMA / Open Type |
| Interface Module | Standard |
| Frame Size | Frame C |
| EMC Filtering Option | No Filtering |
