25B-B2P5N104

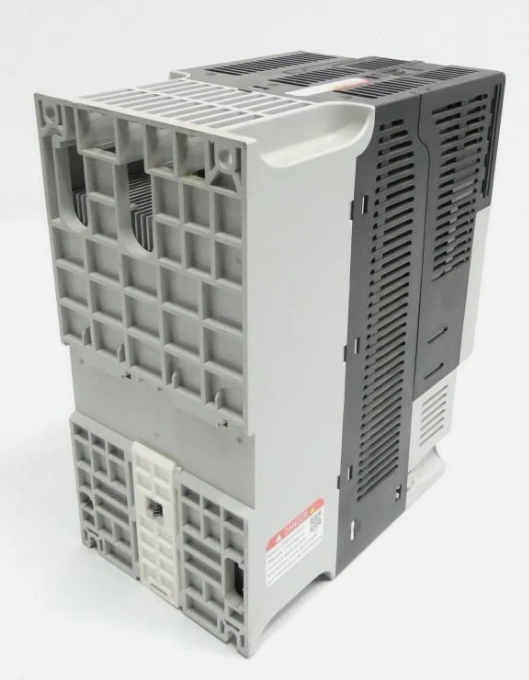

PowerFlex 525 0.4kW (0.5Hp) AC Drive
PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 200…240V AC, 3 Phase, 2.5 Amps, 0.5 Hp, 0.4 kW Normal Duty; 0.5 Hp, 0.4 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
| Brand | Allen-Bradley |
| Input Voltage | 240VAC |
| Built-in Communication Port | Ethernet I/P / RS485 |
| Integrated Safety | Safe-Torque Off (STO) functionality |
| PointStop Technology | Integrated |
| Control Method | Volts per Hertz (V/Hz), Sensorless Vector Control (SVC), Closed-loop velocity vector control, and Permanent Magnet motor control |
| Enclosure Rating | IP20 / NEMA UL Type Open |
| Zero Stacking | Supported |
| Installation | Panel Mount / DIN Rail |
| I/O | Discrete Inputs: Seven (7) Sink / Source Discrete Outputs: One (1) N.O.; One (1) N.C. Contacts; Two (2) Digital / Optocoupler Analog Input: Two (2) Analog Input 0-10VDC; 0- 20mA Analog Output: One (1) Analog Input 0-10VDC; 0- 20mA |
| Output Power | 0.4 kW or 0.5 HP |
| Output Voltage | 0-230VAC |
| Input Phase | 3-Phase |
| Product Family | PowerFlex 525 |
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Part Number/Catalog No. | 25B-B2P5N104 |
| Output Current | 2.5 A |
| Series | PowerFlex 525 Drive |
| Enclosure Type | IP20 NEMA / Open Type |
| Interface Module | Standard |
| Frame Size | Frame A |
| EMC Filtering Options | No Filter |
| UPC | 884951885684 |
