25B-B024N104
Allen-Bradley

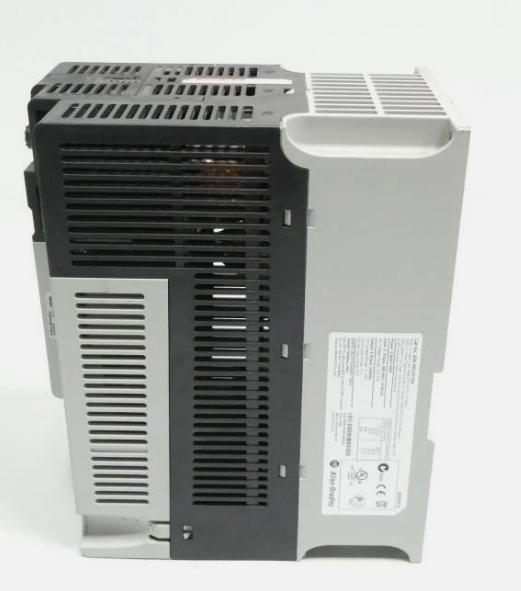

PowerFlex 525 Drive, Variable, 240VAC, 5.5kW, 7.5HP, 24A, Normal & Heavy Duty
| Brand | Allen-Bradley |
| Series | PowerFlex 525 Drive |
| Part Number | 25B-B024N104 |
| Manufacturer | Rockwell Automation |
| Product Family | PowerFlex 523 |
| Voltage | Three Phase, 240 VAC |
| Output Current | 24 Amperes |
| Input Voltage range | 170-264 VAC, 3-Phase |
| Nominal input voltage | 200-240 VAC, 3-Phase |
| Enclosure Type | IP20 NEMA / Open Type |
| Interface Module | Standard |
| Output voltage range | 0-230 VAC, 3-Phase |
| Frame Size | Frame C |
| Output Current | 24.0 A |
| EMC Filtering Options | No Filter |
| Output Power | 5.5 kW or 7.5 HP |
| Output frequency | 0-500 Hz (programmable) |
| Embedded I/O | Discrete Inputs: Seven (7) Sink / Source Discrete Outputs: One (1) N.O.; One (1) N.C. Contacts; Two (2) Digital / Optocoupler Analog Input: Two (2) Analog Input 0-10VDC; 0- 20mA Analog Output: One (1) Analog Input 0-10VDC; 0- 20mA |
| Installation | Panel Mount / DIN Rail |
| Zero Stacking | Supported |
| Built-in communication port | RS485 / Ethernet I/P |
| Control Method | Volts per Hertz (V/Hz), Sensorless Vector Control (SVC), Closed loop velocity vector control |
| Efficiency | 97.50% |
| Stop Modes | Multiple programmable stop modes including – Ramp, Coast, DC-Brake, and Ramp-to-Stop |
| Programmable Acceleration / Deceleration | Four (4) independently programmable accel and decel times with resolution of 0.01 seconds up to 600 seconds. |
