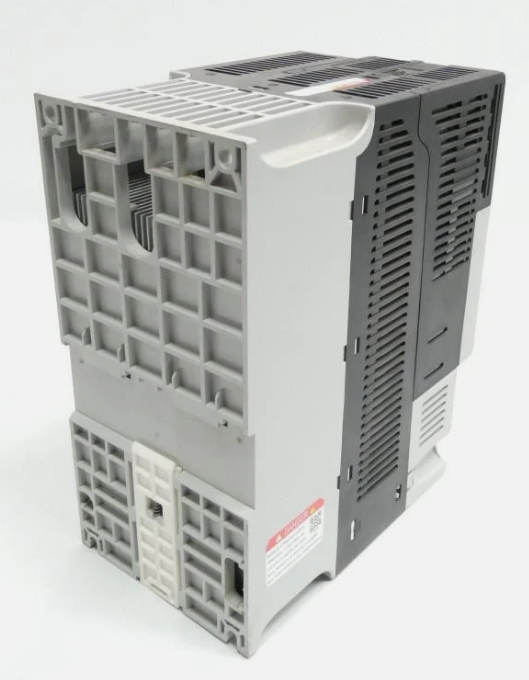

25C-D6P0N104
PowerFlex 527 2.2kW / 3Hp AC Drive
PowerFlex 527 AC Drive, with Embedded Dual Port EtherNet/IP and Integrated Safety, 380…480V AC, 3 Phase, 6 Amps, 3 Hp, 2.2 kW Normal Duty; 3 Hp, 2.2 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
| Technical specifications for 25C-D6P0N104 | |
| Manufacturer | Allen Bradley |
| Category | Drives |
| Product Line | PowerFlex 527 |
| Part Number | 25C-D6P0N104 |
| UPC | 887172530302 |
| Weight | 3.00 lbs (1.36 kg) |
| Output Current | 6.0 A |
| Product Family | PowerFlex 527 Adjustable Frequency AC Drive |
| Input Voltage | 380-480VAC |
| Input Phase | 3-Phase |
| Output Voltage | 0-460VAC |
| Output Power | 2.2 kW (3.0 HP) |
| I/O | Discrete Inputs: Four (4) Inputs Discrete Outputs: Two (2) Opto Outputs and Two (2) Relay Outputs Analog Input: Two (2) Analog Input Analog output: One (1) analog output |
| Installation | Panel Mount |
| Enclosure Rating | IP20 / NEMA UL Open Type |
| Control Method | Volts / Hertz Control; Sensorless Vector Control; Sensorless Vector Economizer |
| Built-in communication port | Two (2) Ethernet ports |
| Integrated Safety | Safe-Torque Off (STO) functionality |
| Compatible Controllers | CompactLogix; GuardLogix; ControlLogix |
| EMC Filter | None |
| Voltage Class | 480 AC Volts |
| Frame Size | A |
| Enclosure Type | IP20 NEMA (Open) |
| EMC Filtering Option | No |
| Phase Count | Three |
| Horsepower | 3 |
| Communication | EtherNet IP (Dual Port) |
