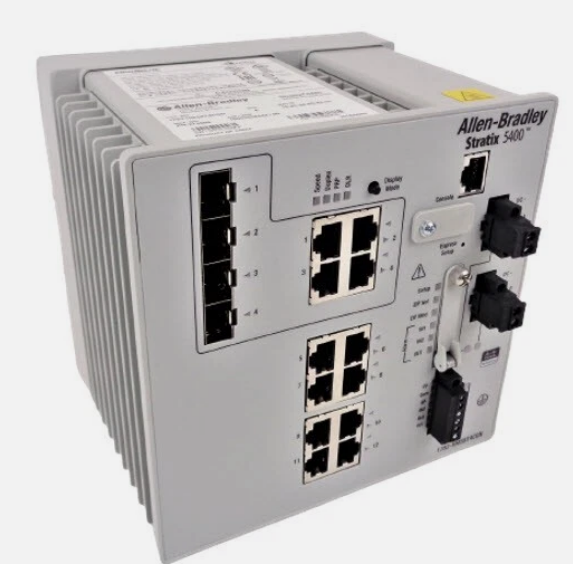

1783-HMS4T4E4CGN
Stratix 5400 12 Port Managed Switch
| Category | Parameter | Specification |
| Product Overview | Catalog # | 1783-HMS4T4E4CGN |
| Product Type | Stratix 5400 Managed Switch | |
| Lifecycle Status | Discontinued (Effective Dec 18, 2024) | |
| Switch Type | Layer 2 | |
| Ports & Performance | Total Ports | 12 |
| Copper (10/100 Mbps) | 4 x RJ45 | |
| PoE+ (10/100 Mbps) | 4 x RJ45 (802.3at) | |
| Combo (10/100/1000 Mbps) | 4 x RJ45 / Mini-GBIC (SFP) | |
| Max. PoE Power Budget | 120 Watts total | |
| Power & Mechanical | Power Input | 12 – 54V DC |
| Power Consumption | 35 W (at 24V DC, 40 °C) | |
| Mounting | DIN Rail (Top hat rail) | |
| Dimensions (W x H x D) | 15.54 x 16.45 x 14.67 cm (6.1 x 6.5 x 5.8 in) | |
| Weight | Approx. 2.88 kg (6.35 lbs) | |
| Environmental | Operating Temp | -40 °C to 70 °C (-40 °F to 158 °F) |
| Relative Humidity | 5% to 95% (Non-condensing) | |
| Operating Shock | 15 g | |
| Vibration | 1 g (5-150 Hz) | |
| Features | Network Address Translation (NAT) | Supported |
| DLR (Device Level Ring) | Supported | |
| CIP Sync (IEEE 1588) | Supported | |
| Conformal Coating | False (Not available) |
