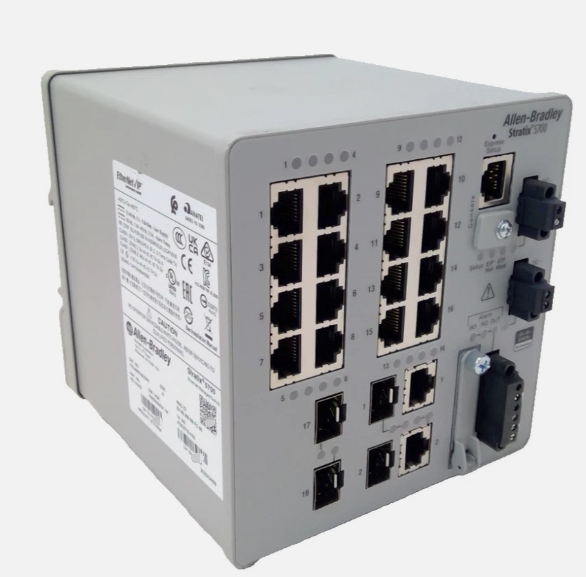

1783-BMS20CGPK
Stratix 5700 20 Port Managed Switch
| Technical Specifications: 1783-BMS20CGPK | ||
| Category | Specification | Details |
| General Information | Catalog Number | 1783-BMS20CGPK |
| Series | Stratix 5700 | |
| Product Type | Managed Industrial Ethernet Switch | |
| Enclosure Rating | IP30 | |
| Conformal Coating | Yes (Protects against moisture, dust, and corrosives) | |
| Ports & Media | Total Ports | 20 |
| Copper Ports (10/100 Mbps) | 16 x RJ45 (Fast Ethernet) | |
| Combo Ports (10/100/1000 Mbps) | 2 x RJ45/SFP (Gigabit Ethernet – Copper or Fiber) | |
| Fiber Slots (SFP) | 2 x SFP Slots (Fast Ethernet) | |
| Power | Power Input | Dual DC Inputs (Redundant) / 24/48V DC (12-60V DC range) |
| Max Power Consumption | 30 W | |
| Environmental Limits | Operating Temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
| Relative Humidity | 5% to 95% (non-condensing) | |
| Vibration Resistance | 2 g at 10–500 Hz | |
| Shock Resistance | 30 g (operating), 55 g (non-operating) | |
| Software & Features | Network Redundancy | Device Level Ring (DLR) |
| Time Synchronization | CIP Sync (IEEE 1588) | |
| Switch Type | Layer 2 Managed (Cisco IOS-based OS) | |
| Physical Dimensions | Weight | Approx. 2.04 kg (4.5 lbs) |
| Dimensions (H x W x D) | Approx. 12.95 cm x 12.7 cm x 13.58 cm (5.1 x 5.0 x 5.35 in) | |
| Mounting | DIN Rail (Top hat rail) | |
