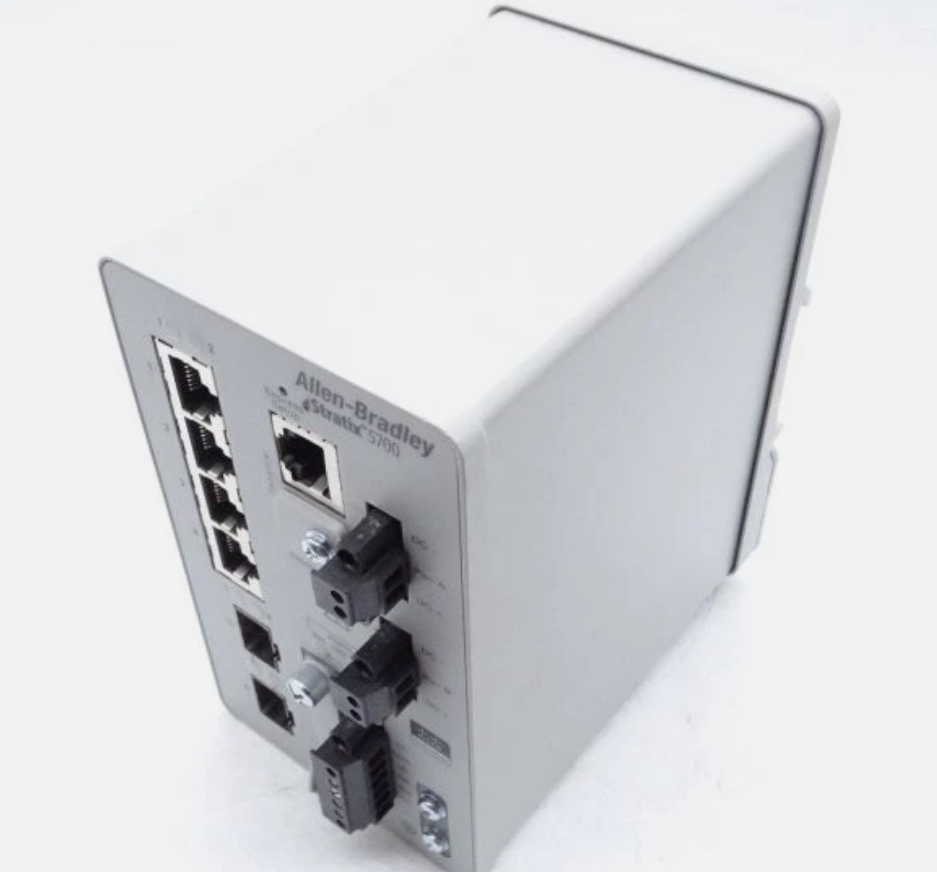

1783-BMS06TGA
Stratix 5700 6 Port Managed Switch
| Product Specification Sheet: 1783-BMS06TGA | |
| Specification Category | Details |
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Part Number | 1783-BMS06TGA |
| Series | Stratix 5700 |
| Product Type | Managed Industrial Ethernet Switch |
| Port Configuration | Total Ports: 6 |
| – 4 x Fast Ethernet (10/100 Mbps) Copper RJ45 | |
| – 2 x Gigabit Ethernet (10/100/1000 Mbps) Copper RJ45 | |
| Software Feature Level | Full Software |
| Network Layer | Layer 2 Managed |
| Mounting | DIN Rail (Top hat rail) |
| Enclosure Rating | IP30 |
| Operating Temperature | -40 °C to 60 °C (-40 °F to 140 °F) |
| Power Consumption | Max 15 W |
| Power Supply | Dual Redundant Inputs |
| Physical Dimensions (HxWxD) | Approx. 130 mm x 75 mm x 116.7 mm (5.12 in x 2.95 in x 4.59 in) |
| Weight | Approx. 0.52 kg to 0.55 kg (1.14 lbs) |
| Key Features | – Cisco IOS (Internet Operating System) integration |
| – Studio 5000 Add-On Profiles and Logix Tags | |
| – FactoryTalk View faceplates | |
| – Network Address Translation (NAT) | |
| – Access Control Lists (Security) | |
| Status | Active |
