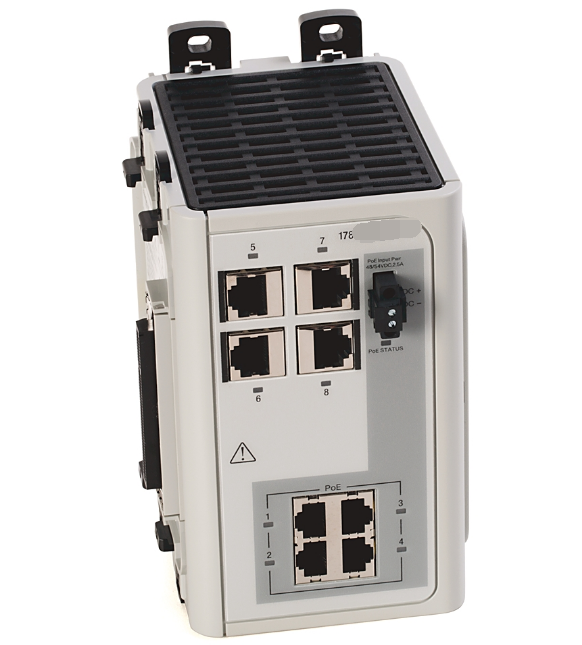

1783-MX04T04E
Stratix 8000 4+4 Port PoE Exp. Module
| Allen-Bradley 1783-MX04T04E Specifications | |
| Specification Category | Details |
| Catalog Number | 1783-MX04T04E |
| Product Type | Stratix 8000/8300 Managed Switch Expansion Module |
| Port Configuration | Total 8 Ports: |
| • 4 Ports: 10/100 Mbps Copper (Non-PoE) | |
| • 4 Ports: 10/100 Mbps Copper (PoE/PoE+) | |
| PoE Support | Supports Power over Ethernet (PoE) and PoE+ on 4 designated ports. |
| (Ports configurable for standard PoE or PoE+) | |
| Enclosure Type | Open-Type Equipment (Must be mounted in a suitable enclosure) |
| Operating Temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
| PoE Power Input | • PoE Configuration: Requires external 48V DC power source |
| • PoE+ Configuration: Requires external 54V DC power source | |
| Grounding | Requires DIN rail grounding (Zinc plated yellow-chromate steel recommended) or external grounding screw (10 AWG wire) |
| Mounting | DIN Rail Mountable |
| Approx. Weight | 0.55 kg (1.21 lbs) |
