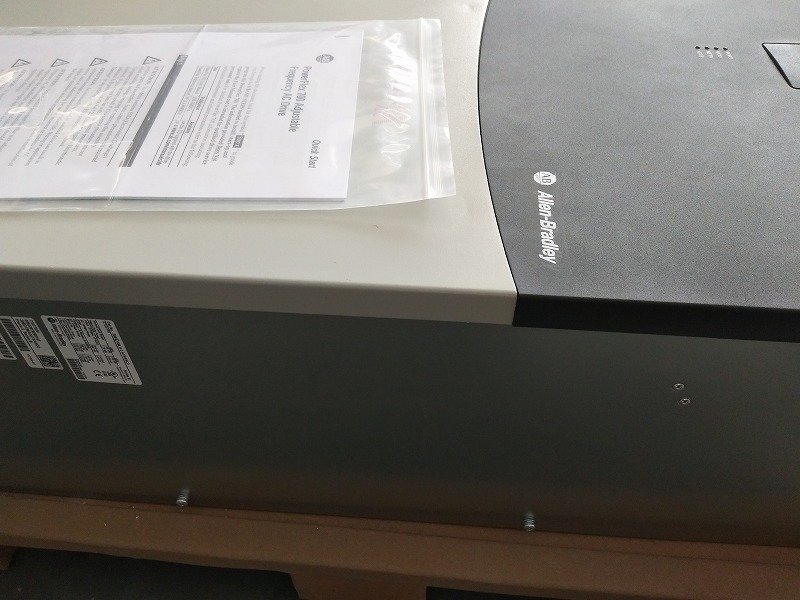

ALLEN-BRADLEY PowerFlex 70 AC Drive, 400 VAC, 3 PH, 5 Amps, 2.2 kW Normal Duty, 1.5 kW Heavy Duty,Panel Mount – IP20 / NEMA Type 1, with conformal coating, No HIM (Blank Plate), Brake IGBT Installed, Without Drive Mounted Brake Resistor, Second Environment Filter per CE EMC directive (89/336/EEC), No Communication Module, Enhanced Control , No Feedback
20AC5P0A0AYNANC0
| BASE DRIVE INFORMATION | |
| Part Number/Catalog No. | 20AC5P0A0AYNANC0 |
| Input Voltage | 400 VAC, 3 PH |
| Output Current | 5 Amps |
| Enclosure | Panel Mount – IP20 / NEMA Type 1, with conformal coating |
| Frame Size | Frame Size B |
| Output Current Information | Output Amps: 5A Cont, 5.5A 1 Min, 7.5A 3 Sec |
| Brake IGBT | Brake IGBT |
| EMC Filtering Options | Second Environment Filter per CE EMC directive (89/336/EEC) |
| OPTIONS INFORMATION | |
| Base Plus Options | Base Plus Options Method |
| Human Interface Module | No HIM (Blank) |
| Internal Communication Module | No Communication Module |
