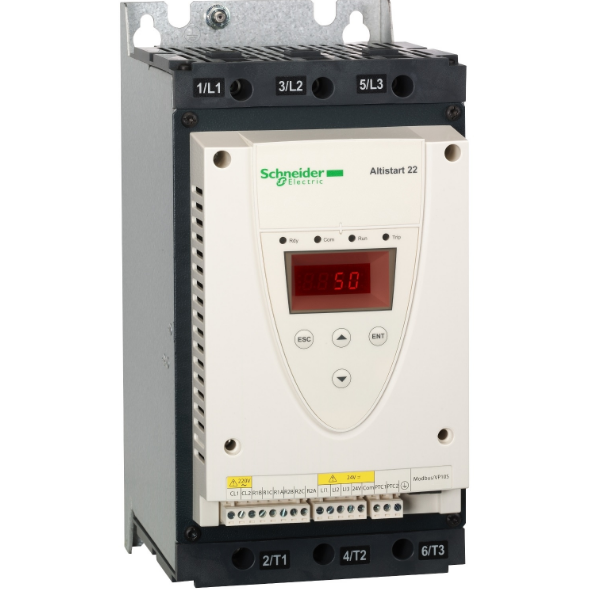

Schneider soft starter for asynchronous motor, Altistart 22, control 230V, 230 to 440V, 22 to 45kW
ATS22D88Q
| Range of Product | Altistart 22 |
| Product or Component Type | Soft starter |
| product destination | Asynchronous motors |
| Product Specific Application | Pumps and fans |
| Component name | ATS22 |
| Phase | 3 phase |
| [Us] rated supply voltage | 230…440 V – 15…10 % |
| Motor power kW | 22 kW 230 V |
| 45 kW 400 V | |
| 45 kW 440 V | |
| Factory setting current | 81 A |
| Power dissipation in W | 66 W for standard applications |
| Utilisation category | AC-53A |
| Type of start | Start with torque control (current limited to 3.5 In) |
| IcL starter rating | 88 A connection in the motor supply line for standard applications |
| IP Degree of Protection | IP20 |
| Assembly style | With heat sink |
| Function Available | Internal bypass |
| Supply voltage limits | 195…484 V |
| Supply frequency | 50…60 Hz – 10…10 % |
| Network Frequency | 45…66 Hz |
| Device connection | To the motor delta terminals |
| In the motor supply line | |
| [Uc] control circuit voltage | 230 V – 15…10 % 50/60 Hz |
| Control circuit consumption | 20 W |
| Discrete output number | 2 |
| Discrete output type | Relay outputs R1 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O |
| Relay outputs R2 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O | |
| Minimum switching current | 100 mA 12 V DC relay outputs) |
| Maximum switching current | 5 A 250 V AC resistive 1 relay outputs |
| 5 A 30 V DC resistive 1 relay outputs | |
| 2 A 250 V AC inductive 0.4 20 ms relay outputs | |
| 2 A 30 V DC inductive 7 ms relay outputs | |
| Discrete input number | 3 |
| Discrete input type | LI1, LI2, LI3) logic, 5 mA 4.3 kOhm |
| Discrete input voltage | 24 V <= 30 V |
| Discrete input logic | Positive logic LI1, LI2, LI3 < 5 V <= 2 mA > 11 V, >= 5 mA |
| Output current | 0.4…1 Icl adjustable |
| PTC probe input | 750 Ohm |
| Communication Port Protocol | Modbus |
| Connector Type | 1 RJ45 |
| Communication data link | Serial |
| Physical interface | RS485 multidrop |
| Transmission Rate | 4800, 9600 or 19200 bps |
| Installed device | 31 |
| Protection type | Phase failure line |
| Thermal protection motor | |
| Thermal protection starter | |
| marking | CE |
| Type of cooling | Forced convection |
| Operating position | Vertical +/- 10 degree |
| Height | 11.61 in (295 mm) |
| Width | 5.71 in (145 mm) |
| Depth | 8.15 in (207 mm) |
| Net Weight | 26.46 lb(US) (12 kg) |
| Motor power range AC-3 | 15…25 kW 200…240 V 3 phase |
| 30…50 kW 380…440 V 3 phase | |
| Motor starter type | Soft starter |
| Electromagnetic compatibility | Conducted and radiated emissions level A IEC 60947-4-2 |
| Damped oscillating waves level 3 IEC 61000-4-12 | |
| Electrostatic discharge level 3 IEC 61000-4-2 | |
| Immunity to electrical transients level 4 IEC 61000-4-4 | |
| Immunity to radiated radio-electrical interference level 3 IEC 61000-4-3 | |
| Voltage/current impulse level 3 IEC 61000-4-5 | |
| Standards | IEC 60947-4-2 |
| Product Certifications | CCC |
| CSA | |
| UL | |
| GOST | |
| C-tick | |
| Vibration resistance | 1 gn 13…200 Hz)IEC 60068-2-6 |
| 1.5 mm 2…13 Hz)IEC 60068-2-6 | |
| Shock resistance | 15 gn 11 ms IEC 60068-2-27 |
| noise level | 45 dB |
| Pollution degree | Level 2 IEC 60664-1 |
| Relative humidity | 0…95 % without condensation or dripping water IEC 60068-2-3 |
| Ambient air temperature for operation | 14…104 °F (-10…40 °C) without derating) |
| 104…140 °F (40…60 °C) with current derating 2.2 % per °C) | |
| Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) |
| Operating altitude | <= 3280.84 ft (1000 m) without derating |
| > 3280.84…< 6561.68 ft (> 1000…< 2000 m) with current derating of 2.2 % per additional 100 m |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 9.06 in (23.000 cm) |
| Package 1 Width | 12.13 in (30.800 cm) |
| Package 1 Length | 14.09 in (35.800 cm) |
| Package 1 Weight | 18.01 lb(US) (8.170 kg) |
