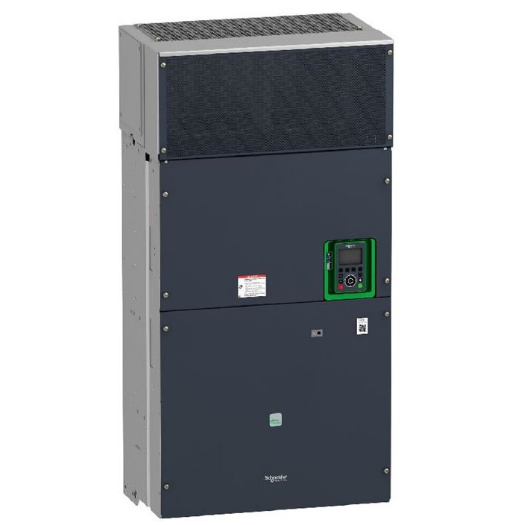

| Mounting Mode |
Wall mount |
| Maximum transient current |
529 A 60 s normal duty) |
| 581 A 60 s heavy duty) |
| Phase |
3 phase |
| Discrete output number |
0 |
| Discrete output type |
Relay outputs R1A, R1B, R1C 250 V AC 3000 mA |
| Relay outputs R1A, R1B, R1C 30 V DC 3000 mA |
| Relay outputs R2A, R2C 250 V AC 5000 mA |
| Relay outputs R2A, R2C 30 V DC 5000 mA |
| Relay outputs R3A, R3C 250 V AC 5000 mA |
| Relay outputs R3A, R3C 30 V DC 5000 mA |
| Output voltage |
<= power supply voltage |
| Permissible temporary current boost |
1.1 x In 60 s normal duty) |
| 1.5 x In 60 s heavy duty) |
| Motor slip compensation |
Automatic whatever the load |
| Adjustable |
| Not available in permanent magnet motor law |
| Can be suppressed |
| Acceleration and deceleration ramps |
Linear adjustable separately from 0.01…9999 s |
| Physical interface |
Ethernet |
| 2-wire RS 485 |
| Braking to standstill |
By DC injection |
| Protection type |
Thermal protection motor |
| Safe torque off motor |
| Motor phase break motor |
| Thermal protection drive |
| Safe torque off drive |
| Overheating drive |
| Overcurrent between output phases and earth drive |
| Overload of output voltage drive |
| Short-circuit protection drive |
| Motor phase break drive |
| Overvoltages on the DC bus drive |
| Line supply overvoltage drive |
| Line supply undervoltage drive |
| Line supply phase loss drive |
| Overspeed drive |
| Break on the control circuit drive |
| Transmission Rate |
10, 100 Mbits |
| 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps |
| Frequency resolution |
Display unit 0.1 Hz |
| Analog input 0.012/50 Hz |
| Transmission frame |
RTU |
| Electrical connection |
Control removable screw terminals 0.5…1.5 mm² AWG 20…AWG 16 |
| Line side screw terminal 4 x 185 mm² 3 x 350 kcmil |
| Motor screw terminal 4 x 185 mm² 3 x 350 kcmil |
| Connector type |
RJ45 on the remote graphic terminal)Ethernet/Modbus TCP |
| RJ45 on the remote graphic terminal)Modbus serial |
| Data format |
8 bits, configurable odd, even or no parity |
| Type of polarization |
No impedance |
| Exchange mode |
Half duplex, full duplex, autonegotiation Ethernet/Modbus TCP |
| Number of addresses |
1…247 Modbus serial |
| Method of access |
Slave Modbus TCP |
| Supply |
External supply for digital inputs 24 V DC 19…30 V), <1.25 mA overload and short-circuit protection |
| Internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection |
| Internal supply for digital inputs and STO 24 V DC 21…27 V), <200 mA overload and short-circuit protection |
| Local signalling |
For local diagnostic 3 LEDs |
| for embedded communication status 3 LEDs (dual colour) |
| for communication module status 4 LEDs (dual colour) |
| for presence of voltage 1 LED (red) |
| Width |
23.54 in (598 mm) |
| Height |
47.05 in (1195 mm) |
| Depth |
14.96 in (380 mm) |
| Net Weight |
447.54 lb(US) (203 kg) |
| analogue input number |
3 |
| Analogue input type |
AI1, AI2, AI3 software-configurable voltage 0…10 V DC 31.5 kOhm 12 bits |
| AI1, AI2, AI3 software-configurable current 0…20 mA 250 Ohm 12 bits |
| AI2 voltage analog input – 10…10 V DC 31.5 kOhm 12 bits |
| Discrete input number |
8 |
| Discrete input type |
DI7, DI8 programmable as pulse input 0…30 kHz, 24 V DC <= 30 V) |
| Input compatibility |
DI1…DI6 discrete input level 1 PLC IEC 61131-2 |
| DI5, DI6 discrete input level 1 PLC IEC 65A-68 |
| STOA, STOB discrete input level 1 PLC IEC 61131-2 |
| Discrete input logic |
Positive logic (source) DI1…DI8), < 5 V, > 11 V |
| Negative logic (sink) DI1…DI8), > 16 V, < 10 V |
| analogue output number |
2 |
| Analogue output type |
Software-configurable voltage AQ1, AQ2 0…10 V DC 470 Ohm 10 bits |
| Software-configurable current AQ1, AQ2 0…20 mA 10 bits |
| Software-configurable current DQ-, DQ+ 30 V DC |
| Software-configurable current DQ-, DQ+ 100 mA |
| Sampling duration |
2 ms +/- 0.5 ms DI1…DI4) – discrete input |
| 5 ms +/- 1 ms DI5, DI6) – discrete input |
| 5 ms +/- 0.1 ms AI1, AI2, AI3) – analog input |
| 10 ms +/- 1 ms AO1) – analog output |
| Accuracy |
+/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 °C analog input |
| +/- 1 % AO1, AO2 for a temperature variation 60 °C analog output |
| Linearity error |
AI1, AI2, AI3 +/- 0.15 % of maximum value analog input |
| AO1, AO2 +/- 0.2 % analog output |
| Relay output number |
3 |
| Relay output type |
Configurable relay logic R1 fault relay NO/NC 100000 cycles |
| Configurable relay logic R2 sequence relay NO 100000 cycles |
| Configurable relay logic R3 sequence relay NO 100000 cycles |
| Refresh time |
Relay output R1, R2, R3)5 ms +/- 0.5 ms) |
| Minimum switching current |
Relay output R1, R2, R3 5 mA 24 V DC |
| Maximum switching current |
Relay output R1, R2, R3 resistive, cos phi = 1 3 A 250 V AC |
| Relay output R1, R2, R3 resistive, cos phi = 1 3 A 30 V DC |
| Relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 250 V AC |
| Relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 30 V DC |
| Isolation |
Between power and control terminals |
| Maximum output frequency |
500 kHz |
| Maximum Input Current per Phase |
451.0 A |
| Variable speed drive application selection |
Building – HVAC compressor centrifugal |
| Food and beverage processing other application |
| Mining mineral and metal fan |
| Mining mineral and metal pump |
| Oil and gas fan |
| Water and waste water other application |
| Building – HVAC screw compressor |
| Food and beverage processing pump |
| Food and beverage processing fan |
| Food and beverage processing atomization |
| Oil and gas electro submersible pump (ESP) |
| Oil and gas water injection pump |
| Oil and gas jet fuel pump |
| Oil and gas compressor for refinery |
| Water and waste water centrifuge pump |
| Water and waste water positive displacement pump |
| Water and waste water electro submersible pump (ESP) |
| Water and waste water screw pump |
| Water and waste water lobe compressor |
| Water and waste water screw compressor |
| Water and waste water compressor centrifugal |
| Water and waste water fan |
| Water and waste water conveyor |
| Water and waste water mixer |
| Motor power range AC-3 |
250…500 kW 380…440 V 3 phase |
| 250…500 kW 480…500 V 3 phase |
| Quantity per Set |
1 |
| enclosure mounting |
Wall mounted |
