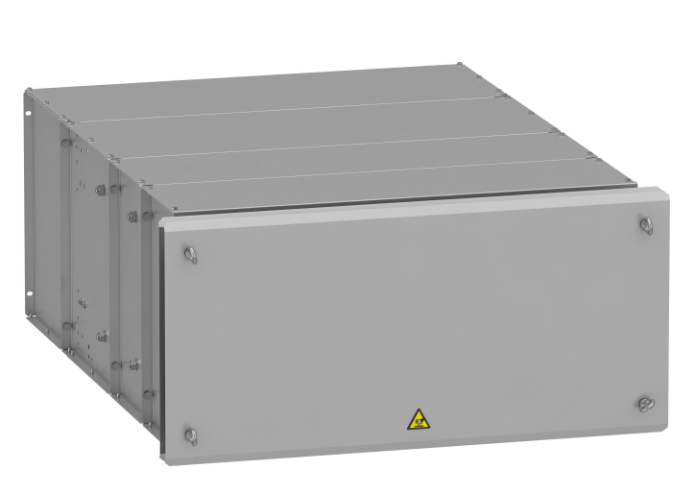

braking resistor, Altivar, 10Ohms, 19kW, IP23
VW3A7754
| Main | |
| Range Compatibility | Altivar Machine ATV340 |
| Altivar Process ATV900 | |
| Product or Component Type | Braking resistor |
| Ohmic value | 10 Ohm |
| [Ue] rated operational voltage | 24 V DC |
| 250 V AC | |
| Average power available | 19 kW 122 °F (50 °C) |
| Electrical connection | terminal <= 2.5 mm² / AWG 12 temperature control switch |
| M12 bar wire drive | |
| Protection type | Thermal protection via drive or temperature control switch 120 °C |
| Width | 21.3 in (540 mm) |
| Height | 40.7 in (1035 mm) |
| Depth | 33.9 in (860 mm) |
| Net Weight | 156.5 lb(US) (71 kg) |
| Environment | |
| IP Degree of Protection | IP23 |
| Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) |
| Ambient Air Temperature for Operation | 32…122 °F (0…50 °C) |
