| Main |
| Range of product |

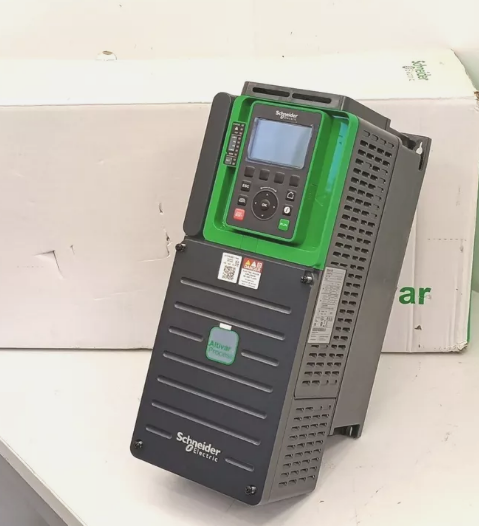

Altivar Process ATV900 |
| Device application |
Industrial application |
| Product or component type |
Variable speed drive |
| Product destination |
Synchronous motors |
| Asynchronous motors |
| Product specific application |
Process for industrial |
| Variant |
Standard version |
| With braking chopper |
| Network number of phases |
3 phases |
| Single phase |
| Mounting mode |
Wall mount |
| Communication port protocol |
Ethernet IP/Modbus TCP |
| Modbus |
| [Us] rated supply voltage |
380…480 V – 15…10 % |
| Continuous output current |
211 A at 4 kHz for normal duty |
| 173 A at 4 kHz for heavy duty |
| EMC filter |
Integrated |
| With EMC plate option |
| IP degree of protection |
IP21 |
| Degree of protection |
UL type 1 |
| option module |
Slot A: communication module for Profibus DP V1 |
| Slot A: communication module for PROFINET |
| Slot A: communication module for DeviceNet |
| Slot A: communication module for EtherCAT |
| Slot A: communication module for CANopen daisy chain RJ45 |
| Slot A: communication module for CANopen SUB-D 9 |
| Slot A: communication module for CANopen screw terminals |
| Slot A/slot B/slot C: digital and analog I/O extension module |
| Slot A/slot B/slot C: output relay extension module |
| Slot B: 5/12 V digital encoder interface module |
| Slot B: analog encoder interface module |
| Slot B: resolver encoder interface module |
| Motor power kW |
110.0 kW for normal duty |
| 90.0 kW for heavy duty |
| Asynchronous motor control profile |
Constant torque standard |
| Variable torque standard |
| Optimized torque mode |
| Synchronous motor control profile |
Permanent magnet motor |
| Synchronous reluctance motor |
| Maximum output frequency |
599 Hz |
| Switching frequency |
1…8 kHz adjustable |
| 2.5…8 kHz with derating factor |
| Nominal switching frequency |
2.5 kHz |
| Line current |
201.0 A at 380 V (normal duty) |
| 170.0 A at 380 V (heavy duty) |
| 165.0 A at 480 V (normal duty) |
| 143.0 A at 480 V (heavy duty) |
| Apparent power |
121.8 kVA at 380…480 V (normal duty) |
| 102.6 kVA at 380…480 V (heavy duty) |
| Maximum transient current |
253 A during 60 s (normal duty) |
| 259.5 A during 60 s (heavy duty) |
| Network frequency |
50…60 Hz |
| Prospective line Isc |
50 kA |
| Complementary |
| Discrete input number |
10 |
| Relay output type |
Configurable relay logic R1: fault relay NO/NC electrical durability 100000 cycles |
| Configurable relay logic R2: sequence relay NO electrical durability 1000000 cycles |
| Configurable relay logic R3: sequence relay NO electrical durability 1000000 cycles |
| Physical interface |
Ethernet |
| 2-wire RS 485 |
| Connector type |
2 RJ45 |
| 1 RJ45 |
| Method of access |
Slave Modbus TCP |
| Transmission rate |
10, 100 Mbits |
| 4.8 kbps |
| 9600 bit/s |
| 19200 bit/s |
| Transmission frame |
RTU |
| Number of addresses |
1…247 |
| Data format |
8 bits, configurable odd, even or no parity |
| Type of polarization |
No impedance |
| 4 quadrant operation possible |
TRUE |
| Acceleration and deceleration ramps |
Linear adjustable separately from 0.01…9999 s |
| S, U or customized |
| Motor slip compensation |
Adjustable |
| Automatic whatever the load |
| Can be suppressed |
| Not available in permanent magnet motor law |
| Braking to standstill |
By DC injection |
| Brake chopper integrated |
TRUE |
| Maximum input current |
201.0 A |
| Maximum output voltage |
480.0 V |
| Relative symmetric network frequency tolerance |
5% |
| Base load current at high overload |
173.0 A |
| Base load current at low overload |
211.0 A |
| With safety function Safely Limited Speed (SLS) |
TRUE |
| With safety function Safe brake management (SBC/SBT) |
TRUE |
| With safety function Safe Operating Stop (SOS) |
FALSE |
| With safety function Safe Position (SP) |
FALSE |
| With safety function Safe programmable logic |
FALSE |
| With safety function Safe Speed Monitor (SSM) |
FALSE |
| With safety function Safe Stop 1 (SS1) |
TRUE |
| With sft fct Safe Stop 2 (SS2) |
FALSE |
| With safety function Safe torque off (STO) |
TRUE |
| With safety function Safely Limited Position (SLP) |
FALSE |
| With safety function Safe Direction (SDI) |
FALSE |
| Protection type |
Thermal protection: motor |
| Safe torque off: motor |
| Motor phase break: motor |
| Thermal protection: drive |
| Safe torque off: drive |
| Overheating: drive |
| Overcurrent between output phases and earth: drive |
| Overload of output voltage: drive |
| Short-circuit protection: drive |
| Motor phase break: drive |
| Overvoltages on the DC bus: drive |
| Line supply overvoltage: drive |
| Line supply undervoltage: drive |
| Line supply phase loss: drive |
| Overspeed: drive |
| Break on the control circuit: drive |
| Quantity per set |
1 |
| Width |
320 mm |
| Height |
1205 mm |
| Depth |
393 mm |
| Net weight |
104 kg |
| Electrical connection |
Line side: screw terminal 2 x 50…3 x 120 mm²/2 x AWG 1/0…2 x 300 kcmil |
| DC bus: screw terminal 0.5…1.5 mm²/AWG 20…AWG 16 |
| Control: screw terminal 0.5…1.5 mm²/AWG 20…AWG 16 |
| Transmission rate |
10/100 Mbit/s for Ethernet IP/Modbus TCP |
| 4.8, 9.6, 19.2, 38.4 kbit/s for Modbus serial |
| Data format |
8 bits, configurable odd, even or no parity for Modbus serial |
| Type of polarization |
No impedance for Modbus serial |
| Number of addresses |
1…247 for Modbus serial |
| Local signalling |
Local diagnostic: 3 LEDs (mono/dual colour) |
| 5 LEDs (dual colour) |
| 2 LEDs (dual colour) |
| 1 LED (red) |
| Isolation |
Between power and control terminals |
| Environment |
| Operating position |
Vertical +/- 10 degree |
| Product certifications |
UL |
| CSA |
| TÜV |
| Marking |
CE |
| Standards |
UL 508C |
| IEC 61800-3 |
| IEC 61800-5-1 |
| IEC 61000-3-12 |
| IEC 60721-3 |
| IEC 61508 |
| IEC 13849-1 |
| Maximum THDI |
<48 % full load conforming to IEC 61000-3-12 |
| Assembly style |
Enclosed |
| Electromagnetic compatibility |
Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 |
| Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3 |
| Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 |
| 1.2/50 µs – 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5 |
| Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6 |
| Environmental class (during operation) |
Class 3C3 according to IEC 60721-3-3 |
| Class 3S3 according to IEC 60721-3-3 |
| Maximum acceleration under shock impact (during operation) |
150 m/s² at 11 ms |
| Maximum acceleration under vibrational stress (during operation) |
10 m/s² at 13…200 Hz |
| Maximum deflection under vibratory load (during operation) |
1.5 mm at 2…13 Hz |
| Permitted relative humidity (during operation) |
Class 3K5 according to EN 60721-3 |
| Overvoltage category |
III |
| Regulation loop |
Adjustable PID regulator |
| Insulation resistance |
> 1 MOhm 500 V DC for 1 minute to earth |
| Noise level |
69.9 dB conforming to 86/188/EEC |
| Vibration resistance |
1.5 mm peak to peak (f= 2…13 Hz) conforming to IEC 60068-2-6 |
| 1 gn (f= 13…200 Hz) conforming to IEC 60068-2-6 |
| Shock resistance |
6 gn for 11 ms conforming to IEC 60068-2-27 |
| Environmental characteristic |
Chemical pollution resistance class 3C3 conforming to IEC 60721-3-3 |
| Dust pollution resistance class 3S3 conforming to IEC 60721-3-3 |
| Relative humidity |
5…95 % without condensation conforming to IEC 60068-2-3 |
| Ambient air temperature for operation |
-15…50 °C (without derating) |
| 50…60 °C (with derating factor) |
| Noise level |
69.9 dB |
| pollution degree |
2 |
| Ambient air transport temperature |
-25…70 °C |
| Ambient air temperature for storage |
-25…70 °C |

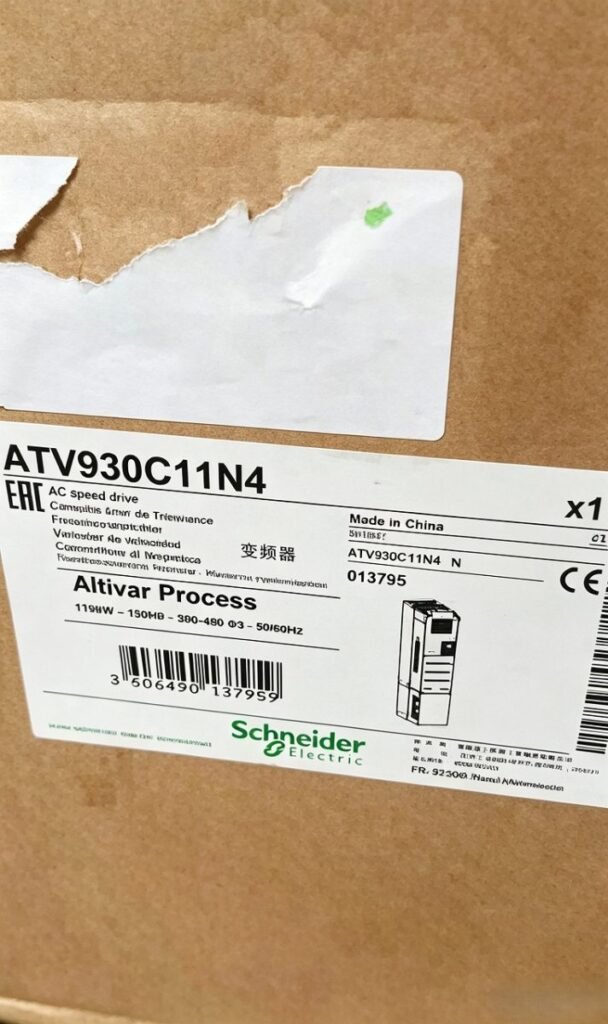

| Packing Units |
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
71.000 cm |
| Package 1 Width |
50.000 cm |
| Package 1 Length |
141.000 cm |
| Package 1 Weight |
128.000 kg |
| Logistical informations |
| Country of origin |
CN |
