| Main |
| Range of Product |

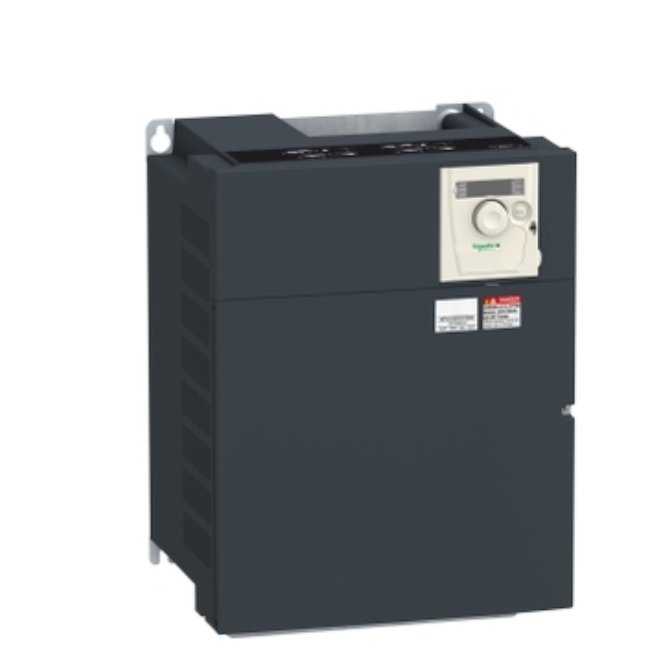

Altivar 312 |
| Product or Component Type |
Variable speed drive |
| Product destination |
Asynchronous motors |
| Product Specific Application |
Simple machine |
| Assembly style |
With heat sink |
| Component name |
ATV312 |
| Motor power kW |
15 kW |
| Maximum Horse Power Rating |
20 hp |
| [Us] rated supply voltage |
380…500 V – 15…10 % |
| Supply frequency |
50…60 Hz – 5…5 % |
| Phase |
3 phase |
| Line current |
48.2 A 380 V, Isc = 22 kA |
| 36.8 A 500 V |
| EMC filter |
Integrated |
| Apparent power |
32 kVA |
| Maximum transient current |
49.5 A 60 s |
| Power dissipation in W |
492 W at nominal load |
| Speed range |
1…50 |
| Asynchronous motor control profile |
Sensorless flux vector control with PWM type motor control signal |
| Factory set : constant torque |
| Electrical connection |
Al1, Al2, Al3, AOV, AOC, R1A, R1B, R1C, R2A, R2B, LI1…LI6 terminal 0.004 in² (2.5 mm²) AWG 14 |
| L1, L2, L3, U, V, W, PA, PB, PA/+, PC/- terminal 0.04 in² (25 mm²) AWG 3 |
| Supply |
Internal supply for logic inputs 19…30 V 100 mA overload and short-circuit protection |
| Internal supply for reference potentiometer (2.2 to 10 kOhm) 10…10.8 V 10 mA overload and short-circuit protection |
| Communication Port Protocol |
Modbus |
| CANopen |
| IP degree of protection |
IP20 on upper part without cover plate |
| IP21 on connection terminals |
| IP31 on upper part |
| IP41 on upper part |
| Option card |
Communication card CANopen daisy chain |
| Communication card DeviceNet |
| Communication card Fipio |
| Communication card Modbus TCP |
| Communication card Profibus DP |
| Complementary |
| Supply voltage limits |
323…550 V |
| Prospective line Isc |
22 kA |
| Continuous output current |
33 A 4 kHz |
| Output frequency |
0…500 Hz |
| Nominal switching frequency |
4 kHz |
| Switching frequency |
2…16 kHz adjustable |
| Transient overtorque |
170…200 % of nominal motor torque |
| Braking torque |
150 % 60 s with braking resistor |
| 100 % with braking resistor continuously |
| 150 % without braking resistor |
| Regulation loop |
Frequency PI regulator |
| Motor slip compensation |
Adjustable |
| Automatic whatever the load |
| Suppressable |
| Output voltage |
<= power supply voltage |
| Tightening torque |
Al1, Al2, Al3, AOV, AOC, R1A, R1B, R1C, R2A, R2B, LI1…LI6 5.3 lbf.in (0.6 N.m) |
| L1, L2, L3, U, V, W, PA, PB, PA/+, PC/- 39.8 lbf.in (4.5 N.m) |
| Insulation |
Electrical between power and control |
| Analogue input number |
3 |
| Analogue input type |
AI1 configurable voltage 0…10 V 30 V max 30000 Ohm |
| AI2 configurable voltage +/- 10 V 30 V max 30000 Ohm |
| AI3 configurable current 0…20 mA 250 Ohm |
| Sampling duration |
AI1, AI2, AI3 8 ms analog |
| LI1…LI6 4 ms discrete |
| Response time |
AOV, AOC 8 ms analog |
| R1A, R1B, R1C, R2A, R2B 8 ms discrete |
| Linearity error |
+/- 0.2 % output |
| Analogue output number |
1 |
| Analogue output type |
AOC configurable current 0…20 mA 800 Ohm 8 bits |
| AOV configurable voltage 0…10 V 470 Ohm 8 bits |
| Discrete input logic |
Logic input not wired LI1…LI4), < 13 V |
| Negative logic (source) LI1…LI6), > 19 V |
| Positive logic (source) LI1…LI6), < 5 V, > 11 V |
| Discrete output number |
2 |
| Discrete output type |
Configurable relay logic R1A, R1B, R1C) 1 NO + 1 NC – 100000 cycles |
| Configurable relay logic R2A, R2B) NC – 100000 cycles |
| Minimum switching current |
R1-R2 10 mA 5 V DC |
| Maximum switching current |
R1-R2 2 A 250 V AC inductive, cos phi = 0.4 7 ms |
| R1-R2 2 A 30 V DC inductive, cos phi = 0.4 7 ms |
| R1-R2 5 A 250 V AC resistive, cos phi = 1 0 ms |
| R1-R2 5 A 30 V DC resistive, cos phi = 1 0 ms |
| Discrete input number |
6 |
| Discrete input type |
LI1…LI6) programmable 24 V, 0…100 mA PLC 3500 Ohm |
| Acceleration and deceleration ramps |
S, U or customized |
| Linear adjustable separately from 0.1 to 999.9 s |
| Braking to standstill |
By DC injection |
| Protection type |
Input phase breaks drive |
| Line supply overvoltage and undervoltage safety circuits drive |
| Line supply phase loss safety function, for three phases supply drive |
| Motor phase breaks drive |
| Overcurrent between output phases and earth (on power up only) drive |
| Overheating protection drive |
| Short-circuit between motor phases drive |
| Thermal protection motor |
| Insulation resistance |
>= 500 mOhm 500 V DC for 1 minute |
| Local signalling |
for drive voltage 1 LED (red) |
| for CANopen bus status four 7-segment display units |
| Time constant |
5 ms for reference change |
| Frequency resolution |
Analog input 0.1…100 Hz |
| Display unit 0.1 Hz |
| Connector type |
1 RJ45 Modbus/CANopen |
| Physical interface |
RS485 multidrop serial link |
| Transmission frame |
RTU |
| Transmission Rate |
10, 20, 50, 125, 250, 500 kbps or 1 Mbps CANopen |
| 4800, 9600 or 19200 bps Modbus |
| Number of addresses |
1…127 CANopen |
| 1…247 Modbus |
| Number of drive |
127 CANopen |
| 31 Modbus |
| Marking |
CE |
| Operating position |
Vertical +/- 10 degree |
| Outer dimension |
390 x 245 x 190 mm |
| 595 x 234 x 268 mm |
| 330 x 245 x 190 mm |
| Height |
13.0 in (329.5 mm) |
| Width |
9.6 in (245 mm) |
| Depth |
7.6 in (192 mm) |
| Net Weight |
24.3 lb(US) (11 kg) |
| Environment |
| Dielectric strength |
2410 V DC between earth and power terminals |
| 3400 V AC between control and power terminals |
| Electromagnetic compatibility |
1.2/50 µs – 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5 |
| Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 |
| Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 |
| Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3 |
| Standards |
IEC 61800-5-1 |
| IEC 61800-3 |
| Product Certifications |
UL |
| CSA |
| DNV |
| GOST |
| C-tick |
| NOM |
| pollution degree |
2 |
| Protective treatment |
TC |
| Vibration resistance |
1 gn (f= 13…150 Hz) conforming to EN/IEC 60068-2-6 |
| 1.5 mm (f= 3…13 Hz) conforming to EN/IEC 60068-2-6 |
| Shock resistance |
15 gn 11 ms EN/IEC 60068-2-27 |
| Relative humidity |
5…95 % without condensation IEC 60068-2-3 |
| 5…95 % without dripping water IEC 60068-2-3 |
| Ambient Air Temperature for Storage |
-13…158 °F (-25…70 °C) |
| Ambient air temperature for operation |
14…122 °F (-10…50 °C) without derating with protective cover on top of the drive) |
| 14…140 °F (-10…60 °C) with derating factor without protective cover on top of the drive) |
| Operating altitude |
<= 3280.84 ft (1000 m) without derating |
| 3280.84…9842.52 ft (1000…3000 m) with current derating 1 % per 100 m |
| Ordering and shipping details |
| Category |
US1CP4B22153 |
| Discount Schedule |
CP4B |
| GTIN |
3606480077524 |
| Returnability |
|
| Country of origin |
ID |
