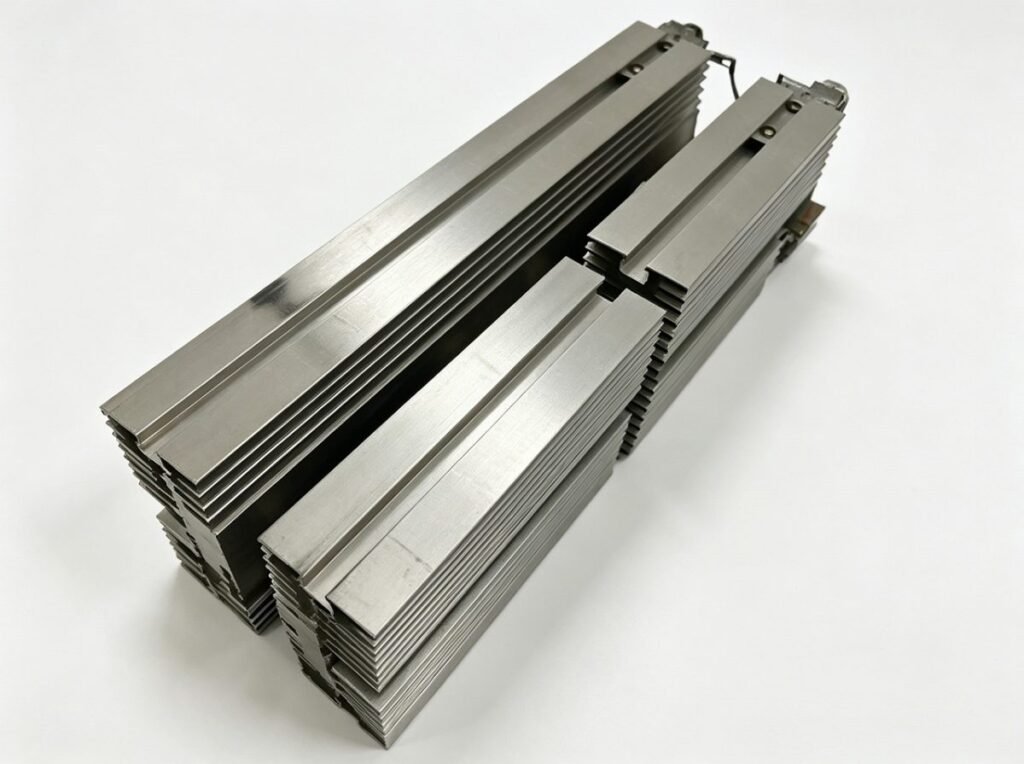

6SY7010-0AB01 Specifications
Basic Information
- Model: 6SY7010-0AB01
- Type: Siemens Thyristor Module
- Brand: Siemens (Made in Germany)
- Applicable Equipment: SIMOVERT MV, 6SE70 / 6RA70 series high-power inverters and DC drive units
Core Electrical Ratings
- Rated AC Input Voltage: 380～460V, 50/60Hz
- Rated RMS Current: 1023A
- Repetitive Peak Off-state Voltage (VDRM): 1600V
- Non-repetitive Surge Current (ITSM): Approx. 1230A (peak, 50Hz half-wave)
- Gate Trigger Current (IGT): ≤2A
- Gate Trigger Voltage (VGT): ≤3.6V
- Holding Current (IH): Approx. 1300mA
- On-state Voltage Drop (VTM): Approx. 1.8V (typical)
Environmental & Mechanical Parameters
- Operating Junction Temperature: -40℃ ～ +125℃
- Storage Temperature: -55℃ ～ +150℃
- Cooling Method: Water cooling (standard) / Forced air cooling (optional)
- Weight: Approx. 25kg
- Dimensions (W×H×D): Approx. 730×380×450mm
- Protection Class: IP20 (module body)
Features
- High power density, designed for high-power drive applications.
- Built-in snubber circuit to suppress overvoltage and protect thyristors.
- Ceramic-metal composite packaging, vibration and impact resistant.
- Modular structure for easy maintenance and replacement.
Reference Equivalent & Related Models
| Model | Rated Current | Input Voltage | Remark |
|---|---|---|---|
| 6SY7010-0AB01 | 1023A | 380-460V | Standard version |
| 6SY7010-0AB15 | 1023A | 500-575V | High voltage version |
| 6SY7010-0AB31 | 1285A | 660-690V | High current & high voltage version |
