6AV3617-1JC20-0AX1 | 6AV3 617-1JC20-0AX1 | 6AV36171JC200AX1

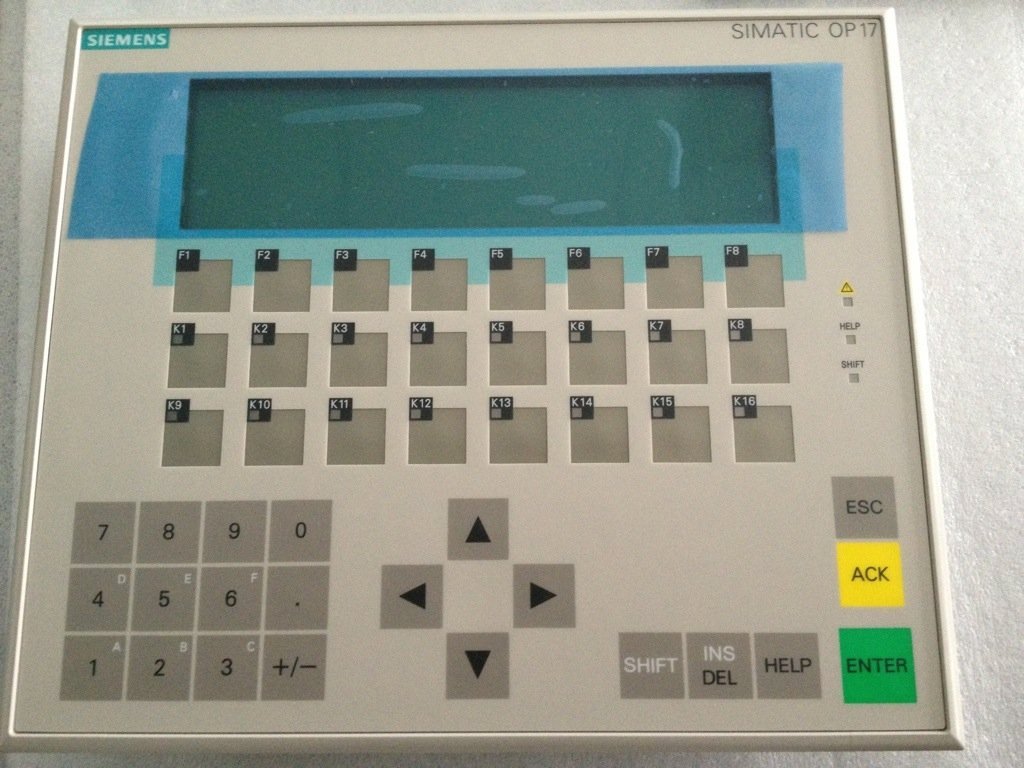

***Spare part*** Operator Panel OP 17/DP LC display, LED backlit 4x 20/8x 40 lines x characters SIMATIC S7, M7, PROFIBUS DP 1.5 Mbaud with UL/CSA approval
| Price data | |
| Region Specific PriceGroup / Headquarter Price Group | 2AP / 2AP |
| List Price | |
| Customer Price | |
| Surcharge for Raw Materials | None |
| Metal Factor | None |
| Delivery information | |
| Export Control Regulations | ECCN : N / AL : N |
| Estimated dispatch time (Working Days) | On request |
| Net Weight (kg) | 0,560 Kg |
| Packaging Dimension | 25,00 x 28,70 x 8,00 |
| Package size unit of measure | CM |
| Quantity Unit | 0 Piece |
| Packaging Quantity | 1 |
| Series name | Operator Panel OP 17/DP LC display |
| Type | Lines |
| Line display | display |
| Number of lines, max. | 8 |
| Characters per line (max.) | 40 |
| Operating options | Keys |
| Function keys, programmable | 24 function keys,16 with LEDs |
| Membrane keyboard | Yes |
| Connection for mouse/keyboard/barcode reader | – / -/- |
| Type of supply voltage | 24 V DC |
| Rated current | 0.34 A |
| Power | 10 W |
| Type Flash | RAM |
| Usable memory for user data | 256 KB usable memory for user data |
| Interfaces | 2 x RS232, 1 x RS422, 1 x RS485 (max. 1.5 Mbit/s) |
