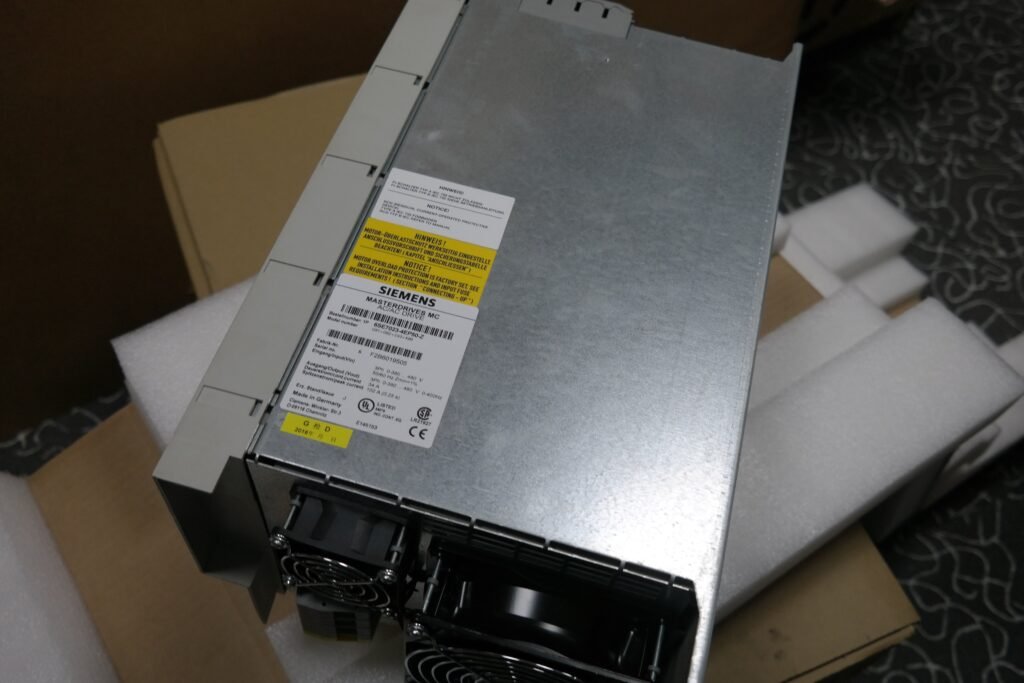

6SE7034-6EE85-1AA0 6SE70346EE851AA0. SIMOVERT Master drives Infeed/regenerative feedback units Built-in unit/IP00 380-480 V 3 AC, 50/60 Hz 463A
Alternate PN: 6SE7034-6EE85-1AA0
Manufacturer Brands: SIEMENS
Place of Originr: Made in Germany
Net Weight: 52 kg
Inquire this item
6SE7034-6EE85-1AA0 6SE70346EE851AA0. SIMOVERT Master drives Infeed/regenerative feedback units Built-in unit/IP00 380-480 V 3 AC, 50/60 Hz 463A
Product Type: SIMOVERT MASTERDRIVES MC, Regenerative Feedback Unit / Active Infeed Rectifier (400V class, frame E, IP00)
1. Basic & Electrical Parameters
表格
Parameter
Value
Order Number (non-regenerative)
6SE7034-6EE85-0AA0
Order Number (regenerative)
6SE7034-6EE85-1AA0
Product Series
SIMOVERT MASTERDRIVES MC
Unit Type
Infeed / Regenerative Feedback Unit
Frame Size
E
Protection Class
IP00 (open chassis, cabinet installation)
Cooling
Forced-air cooling
Input Voltage
3 AC 380 V … 480 V
Input Frequency
50 / 60 Hz
Rated Input Current (AC)
463 A (at 400 V)
Rated Apparent Power (S)
320 kVA
Rated Active Power (P)
200 kW
Power Factor (cosφ)
≥ 0.95 (at rated load)
Efficiency
≥ 98 %
DC Link Voltage (nominal)
540 V DC (at 400 V AC input)
DC Link Voltage Range
510 V … 680 V DC
Rated DC Output Current
595 A
Overload Capability (DC)
110% for 60 s / 10 min
150% for 3 s
Control Supply Voltage
24 V DC ±10%
Auxiliary Power Consumption
≤ 100 W
2. Control & Interface
表格
Parameter
Value
Control Modes
DC voltage control, current limit, regenerative operation
Communication Interfaces
PROFIBUS‑DP (CBP2), RS485
Control I/O
Digital inputs/outputs, analog inputs/outputs
Switching Frequency
Adjustable (default 2–4 kHz)
Harmonic Performance
Low THDi, meets IEC 61000‑3‑12
3. Environmental & Mechanical
表格
Parameter
Value
Ambient Temperature (operation)
0 … +40 °C (derate above 1000 m)
Storage Temperature
-25 … +70 °C
Relative Humidity
5% – 95% (non‑condensing)
Operating Altitude
Up to 1000 m (derate 1% per 100 m above)
Vibration Resistance
5.9 m/s² (1–13 Hz)
Dimensions (W × H × D)
approx. 450 × 880 × 420 mm
Weight
approx. 52–55 kg
Mounting
Vertical cabinet installation
