6AG1644-0AB01-4AX0

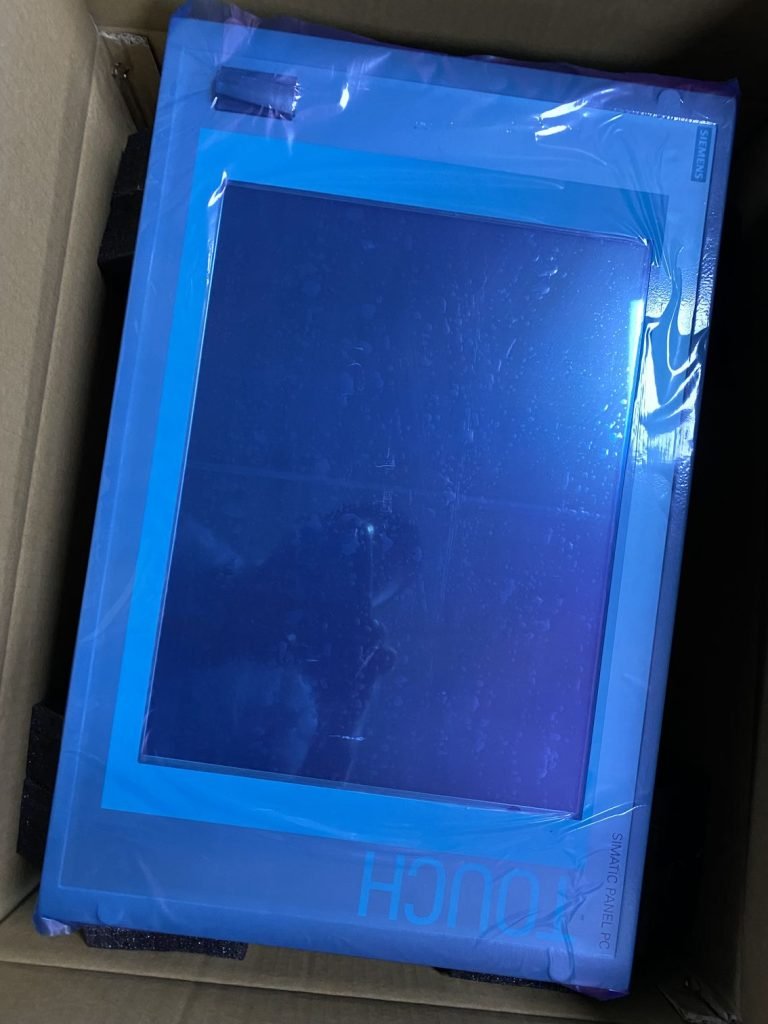

Image similar
***spare part*** SIPLUS HMI MP 377 15″ Touch based on 6AV6644-0AB01-2AX0 with conformal coating, as of 01.01.2015 the product is blocked for delivery and can no longer be ordered as a new part. For information on the successor see FAQ entry ID: 82203106. For further questions, the familiar contact partners are available.
| Product | |
| Article Number (Market Facing Number) | 6AG1644-0AB01-4AX0 |
| Product Description | ***spare part*** SIPLUS HMI MP 377 15″ Touch based on 6AV6644-0AB01-2AX0 with conformal coating, as of 01.01.2015 the product is blocked for delivery and can no longer be ordered as a new part. For information on the successor see FAQ entry ID: 82203106. For further questions, the familiar contact partners are available. |
| Series name | SIPLUS HMI MP 377 |
| Size | 15″ Touch |
| Design of display TFT | TFT |
| Screen diagonal | 15 in |
| Color display | Yes |
| Number of colors | 65 536 |
| Horizontal image resolution | 1 024 pixel |
| Vertical image resolution | 768 pixel |
| Type of supply voltage | DC |
| Current consumption (rated value) | 1.9 A |
| Active power input, typ. | 45.6 W |
| Type of memory | Flash / RAM |
| Memory available for user data | 12 288 kbyte |
| Warranty | 1 YEAR |
| Net Weight (kg) | 5,780 Kg |
| Packaging Dimension | 41,00CM x 52,50CM x 18,00CM |
| Country of origin | Germany |
| Quantity Unit | 1 Piece |
| Packaging Quantity | 1 |
| Additional Product Information | |
| EAN | 4042948448410 |
| UPC | Not available |
| Commodity Code | 85371098 |
| LKZ_FDB/ CatalogID | A&DSE/SIP ADD |
| Product Group | 4395 |
| Group Code | R151 |
