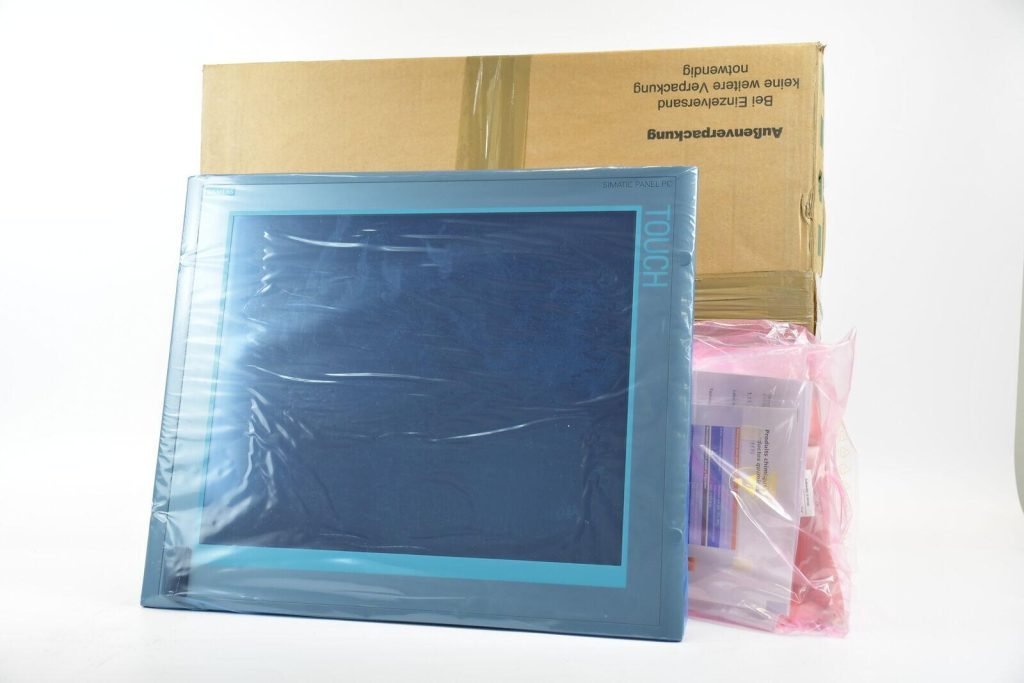

6AV7885-2AL20-1DA4
***no longer available*** SIMATIC HMI IPC 577C PCI slot, 4 USB (back)+1 USB (front), Ethernet (10/100/1000), 15″ touch display ; Core 2 Duo 1.86 GHz, PROFIBUS DP 12; 2x 1 Gbit 2 GB -RAM, DDR3; 2nd mass storage: Not equipped 1st mass storage (Operating system optional): 320 GB HDD SATA WinXP Prof. pre-installed (only possible with HD or SSD) without expansion (software) 110/230 V AC power supply unit with NAMUR, CN network cable
| Product | |
| Article Number (Market Facing Number) | 6AV7885-2AL20-1DA4 |
| Product Description | ***no longer available*** SIMATIC HMI IPC 577C PCI slot, 4 USB (back)+1 USB (front), Ethernet (10/100/1000), 15″ touch display ; Core 2 Duo 1.86 GHz, PROFIBUS DP 12; 2x 1 Gbit 2 GB -RAM, DDR3; 2nd mass storage: Not equipped 1st mass storage (Operating system optional): 320 GB HDD SATA WinXP Prof. pre-installed (only possible with HD or SSD) without expansion (software) 110/230 V AC power supply unit with NAMUR, CN network cable |
| Series name | SIMATIC HMI IPC 577C |
| Size | 15″ touch display |
| Processor type/CPU | Core 2 Duo 1.86 GHz |
| Memory capacity | 2 GB -RAM, DDR3 |
| Harddisk | 320 GB HDD SATA |
| Operating system/OS | WinXP Prof. pre-installed |
| Communication Interface | PROFIBUS DP |
| Network Interface | PROFIBUS DP 12 |
| Other interface | 4 USB (back)+1 USB (front), Ethernet (10/100/1000) |
| Power supply | 110/230 V AC |
| Programming software | without |
| Warranty | 1 year |
| Net Weight (kg) | 15.000 Kg |
| Packaging Dimension | Not available |
| Country of origin | China |
| Quantity Unit | 1 Piece |
| Packaging Quantity | 1 |
| Additional Product Information | |
| EAN | Not available |
| UPC | Not available |
| Commodity Code | 84714100 |
| LKZ_FDB/ CatalogID | ST80E |
| Product Group | 4386 |
| Group Code | R133 |
