6SL3220-1YD38-0CB0

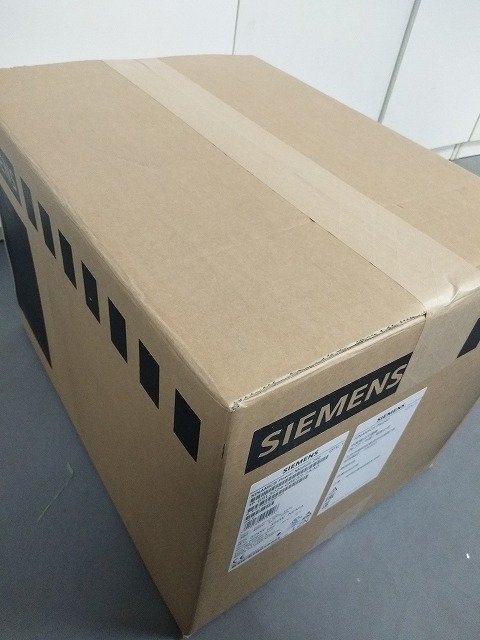

Image similar
SINAMICS G120XA Rated power 45kW 3AC 380V -20% to 440V +10% Integrated class A C3 filter 110% 60s per 600s without Operator Panel Integrated Fieldbus: MODBUS RTU, BACnet MS/TP, USS 6DI, 4DQ, 2AI, 2AQ, 1Mot_t Protection: IP20 Frame Size: FSD 472x200x239 (HxWxD)
| Product | |
| Article Number (Market Facing Number) | 6SL3220-1YD38-0CB0 |
| Product Description | SINAMICS G120XA Rated power 45kW 3AC 380V -20% to 440V +10% Integrated class A C3 filter 110% 60s per 600s without Operator Panel Integrated Fieldbus: MODBUS RTU, BACnet MS/TP, USS 6DI, 4DQ, 2AI, 2AQ, 1Mot_t Protection: IP20 Frame Size: FSD 472x200x239 (HxWxD) |
| Series name | SINAMICS G120XA |
| Rated power | |
| Power Rated | 45kW |
| Power voltage | 3AC 380V -20% to 440V +10% |
| Frequency（HZ）频率 | 47 … 63 Hz |
| Integrated Fieldbus | MODBUS RTU, BACnet MS/TP, USS 6DI, 4DQ, 2AI, 2AQ, 1Mot_t |
| Protection Level | IP20 |
| Warranty | 1 YEAR |
| Net Weight (kg) | 18.300 Kg |
| Packaging Dimension | FSD 472x200x239 (HxWxD) |
| Country of origin | China |
| Quantity Unit | 1 Piece |
| Packaging Quantity | 1 |
| Additional Product Information | |
| EAN | Not available |
| UPC | Not available |
| Commodity Code | 8504409999 |
| LKZ_FDB/ CatalogID | D11.1SD |
| Product Group | 4R49 |
| Group Code | R220 |
