| Basic Identification |
Full MLFB Article Number |
6AV7241-5LG34-0FA0 |
|
Product Designation |

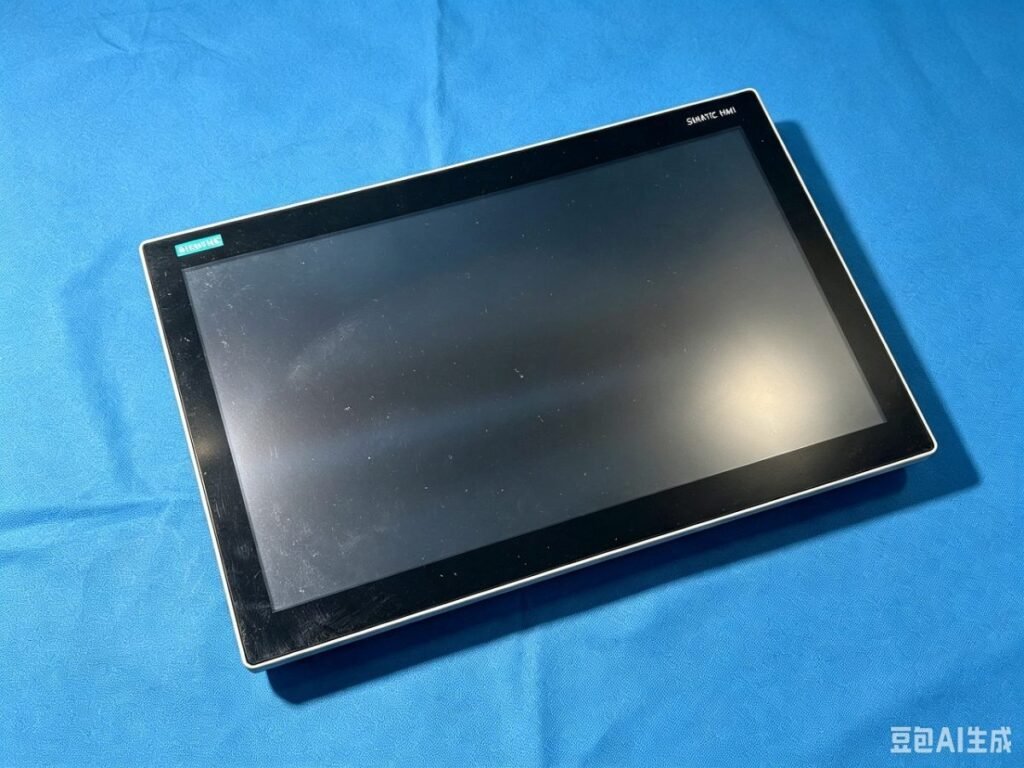

SIMATIC IPC 477E |
|
Manufacturer |
Siemens AG, Germany |
|
Lifecycle Status |
Phase-out, production ends Dec 31, 2025 |
| Display & Multi-Touch Module |
Screen Size |
19-inch industrial TFT LCD |
|
Native Resolution |
WXGA 1366 × 768 pixels |
|
Touch Type |
Capacitive 5-point multi-touch, glove operable |
|
Front Protection Grade |
IP65 (dustproof, splash-resistant) |
|
Rear Chassis Protection |
IP20 (cabinet flush mounting only) |
|
Standard Brightness |
300 cd/m² industrial grade |
|
Backlight MTBF @25°C |
60,000 hours |
| Core Hardware Platform |
CPU (Code L) |
Intel Core i3-6102E, 2C/4T, Base 1.9 GHz, 3 MB L3 Cache, TDP=15W, iAMT supported |
|
Chipset |
Intel H110 embedded chipset |
|
Integrated Graphics |
Intel HD 530 Graphics, dual independent display output |
|
System RAM (Code G34) |
8 GB DDR4 industrial SO-DIMM with onboard NVRAM; max expandable to 16 GB |
|
Cooling System |
Fully sealed fanless passive aluminum heat dissipation, maintenance-free |
| Storage Configuration (Suffix F) |
Main Internal Storage |
240 GB fixed industrial SATA SSD (non-hot-swap, no removable bay) |
|
Expansion Storage Slot |
No CFast card pre-installed, no hot-swap drive tray |
|
Optical Drive |
Not equipped; external USB optical drive optional |
| Onboard Communication Interfaces |
Industrial Ethernet |
3 × Gigabit RJ45 (10/100/1000 Mbps), PROFINET / Industrial Ethernet compliant |
|
Serial COM Ports |
No RS232 / RS485 serial interfaces onboard |
|
USB Interfaces |
1 × front service USB 2.0; 4 × rear USB 3.0 Type-A |
|
External Video Output |
2 × DisplayPort for multi-monitor expansion |
|
PCIe Expansion Slot |
No PCIe x4 expansion slot equipped |
| Operating System (Code 0) |
Factory Pre-installed OS |
Windows 7 Ultimate SP1 64-bit Multi-Language MUI (EN/DE/FR/IT/ES) |
| Visualization Runtime (Suffix A0) |
SIMATIC Runtime Software |
No WinCC RT Advanced / Professional runtime pre-installed |
| Power Supply Specifications |
Nominal Input Voltage |
24 V DC industrial power supply |
|
Allowable Voltage Tolerance |
19.2 V DC ~ 28.8 V DC (-20% / +20%) |
|
Max Full-Load Power Consumption |
45 W |
| Mechanical Dimensions |
Front Panel W × H |
462 mm × 302 mm |
|
Cabinet Cutout Size (W × H) |
443 mm × 283 mm |
|
Overall Installation Depth |
85 mm |
|
Approximate Net Weight |
6.7 kg |
| Environmental Ratings |
Continuous Operating Temp (Vertical Cabinet Mount) |
0 °C ~ +45 °C (performance derating above +40°C) |
|
Storage & Transportation Temperature |
-20 °C ~ +60 °C |
|
Relative Humidity |
5% ~ 90% RH, non-condensing |
|
Max Operation Altitude |
≤ 3,000 m above sea level |
|
Vibration Compliance Standard |
IEC 60068-2-6: 5–500 Hz, 1 g operational |
|
Shock Compliance Standard |
IEC 60068-2-27: 15 g, 11 ms operational |
| Certifications & Compliance |
Global Approvals |
CE, cULus, UL508, FCC Class A, RCM, KC, EAC; DNV/ABS marine certification optional |
