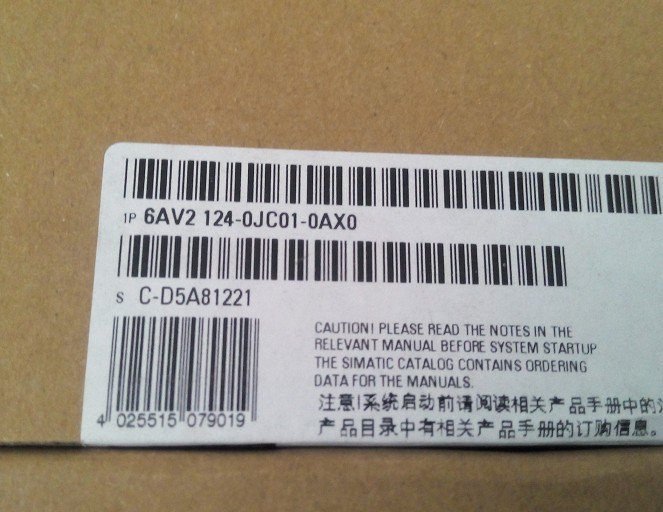

Siemens TP900 panel 6AV2124-0JC01-0AX0
| Parameter Item | Specification |
| Product Model | 6AV2124-0JC01-0AX0 |
| Product Name | SIMATIC HMI TP900 Comfort Panel |
| Operation Method | Touch-only operation, supports multi-touch |
| Processor | X86 Architecture |
| Operating System | Windows CE 6.0 (including security updates) |
| Configuration Software | WinCC Comfort V11 and above |
| Display Type | 9-inch widescreen TFT LCD |
| Screen Size | Diagonal 9 in (228.6 mm), Width 195 mm, Height 117 mm |
| Resolution | 800 × 480 Pixels |
| Color | 16,777,216 colors (16M colors) |
| Backlight | Adjustable brightness (0–100%), MTBF 80,000 hours at 25°C |
| User-Available Memory | 12 MByte (for project configuration storage) |
| Storage Type | Built-in Flash + RAM |
| Expansion Storage | 2 SD card slots, supports CF card expansion |
| Power Supply Type | DC (Direct Current) |
| Rated Voltage | 24 V DC |
| Voltage Range | 19.2 V DC – 28.8 V DC |
| Rated Input Current | 0.75 A |
| Typical Power Consumption | 18 W |
| Inrush Current | I²t = 0.5 A²·s |
| Industrial Ethernet Interface | 1 (integrated 2-port switch, supports PROFINET) |
| MPI/PROFIBUS-DP Interface | 1 (RS 422/485 combination interface) |
| USB Interface | 2 USB 2.0 (including 1 Mini-B 5-pin) |
| SD Card Slots | 2 |
| Communication Protocols | Ethernet: PROFINET, IRT, MRP, TCP/IP, DHCP, SNMP, DCP, LLDP, EtherNet/IP, MODBUS; Fieldbus: PROFIBUS, MPI; Others: OPC UA Client/Server |
| Mounting Method | Vertical mounting, supports portrait/landscape format |
| Maximum Tilt Angle (without external ventilation) | 35° |
| Protection Class | Front panel IP65, Rear IP20 |
| NEMA Certification | Front panel complies with Type 4, Type 4x |
| Operating Temperature (vertical mounting) | 0°C – 50°C (max 55°C, Refer to Document ID: 64847814) |
| Operating Temperature (maximum tilt angle) | 0°C – 40°C |
| Storage/Transport Temperature | -20°C – 60°C |
| Relative Humidity | 5% – 95% (non-condensing), max 90% during operation |
| Front Housing Dimensions | Width 274 mm × Height 190 mm |
| Mounting Cutout Dimensions | Width 251 mm × Height 166 mm |
| Mounting Depth | 63 mm |
| Net Weight | 1.9 kg |
| Weight with Packaging | 2.6 kg |
| Real-Time Clock | Hardware RTC, typical buffer 6 weeks, supports synchronization |
| Audio | Built-in speaker, no buzzer |
| Direct Buttons | 40 touch buttons can be used as S7 input I/O |
| Languages | Supports 32 online languages, switchable online |
| Certifications | CE, cULus, RCM, KC, IECEx/ATEX Zone 2, Zone 22 Explosion-Proof Certification |
