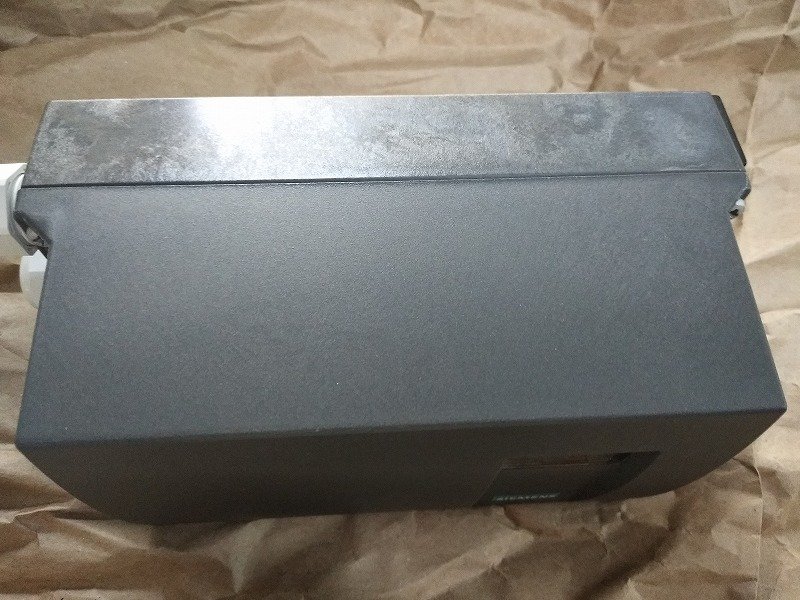

6DR5110-0NM31-0AA3
SIPART PS2 Smart, electropneumatic positioner, 4…20mA, HART, Ex/nEx, single-acting, polycarbonate enclosure, for pneumatic linear and part-turn actuators. Non-contacting (wear-free) position detection (NCS). Standard Without explosion protection. Connection thread el.: M20x1.5 / pneu.: 1/4″ NPT Mechanic Limit Switches (MLS), 2 mechanical limit switches and 1 digital output. Not applicable for natural gas applications. Device plug M12 optionally orderable with -Z D57. Analog Output Module (AOM), analog position feedback 4 … 20 mA. Device plug M12 optionally orderable with -Z D53. Isolating power supply SITRANS I100 separately orderable (7NG4124-1AA00). . Brief instructions English / German / Chinese. Standard / Fail-Safe – Depressurizing the actuator in case of failure of electrical auxiliary power (single acting only). Manometer block aluminum ¼‑18 NPT, single-acting with plastic manometer IP31 (MPa, psi)
| Product | |
| Article Number (Market Facing Number) | 6DR5110-0NM31-0AA3 |
| Product Description | SIPART PS2 Smart, electropneumatic positioner, 4…20mA, HART, Ex/nEx, single-acting, polycarbonate enclosure, for pneumatic linear and part-turn actuators. Non-contacting (wear-free) position detection (NCS). Standard Without explosion protection. Connection thread el.: M20x1.5 / pneu.: 1/4″ NPT Mechanic Limit Switches (MLS), 2 mechanical limit switches and 1 digital output. Not applicable for natural gas applications. Device plug M12 optionally orderable with -Z D57. Analog Output Module (AOM), analog position feedback 4 … 20 mA. Device plug M12 optionally orderable with -Z D53. Isolating power supply SITRANS I100 separately orderable (7NG4124-1AA00). . Brief instructions English / German / Chinese. Standard / Fail-Safe – Depressurizing the actuator in case of failure of electrical auxiliary power (single acting only). Manometer block aluminum ¼‑18 NPT, single-acting with plastic manometer IP31 (MPa, psi) |
| Product family | SIPART PS2 |
| electropneumatic positioner | |
| 4…20mA | |
| HART, Ex/nEx | |
| single-acting | |
| polycarbonate enclosure | |
| Connection thread el. | M20x1.5 / pneu.: 1/4″ NPT Mechanic Limit Switches (MLS) |
| Protection | IP31 (MPa, psi) |
| Warranty | 1 year |
| Net Weight (kg) | 1.265 Kg |
| Packaging Dimension | Not available |
| Country of origin | China |
| Quantity Unit | 1 Piece |
