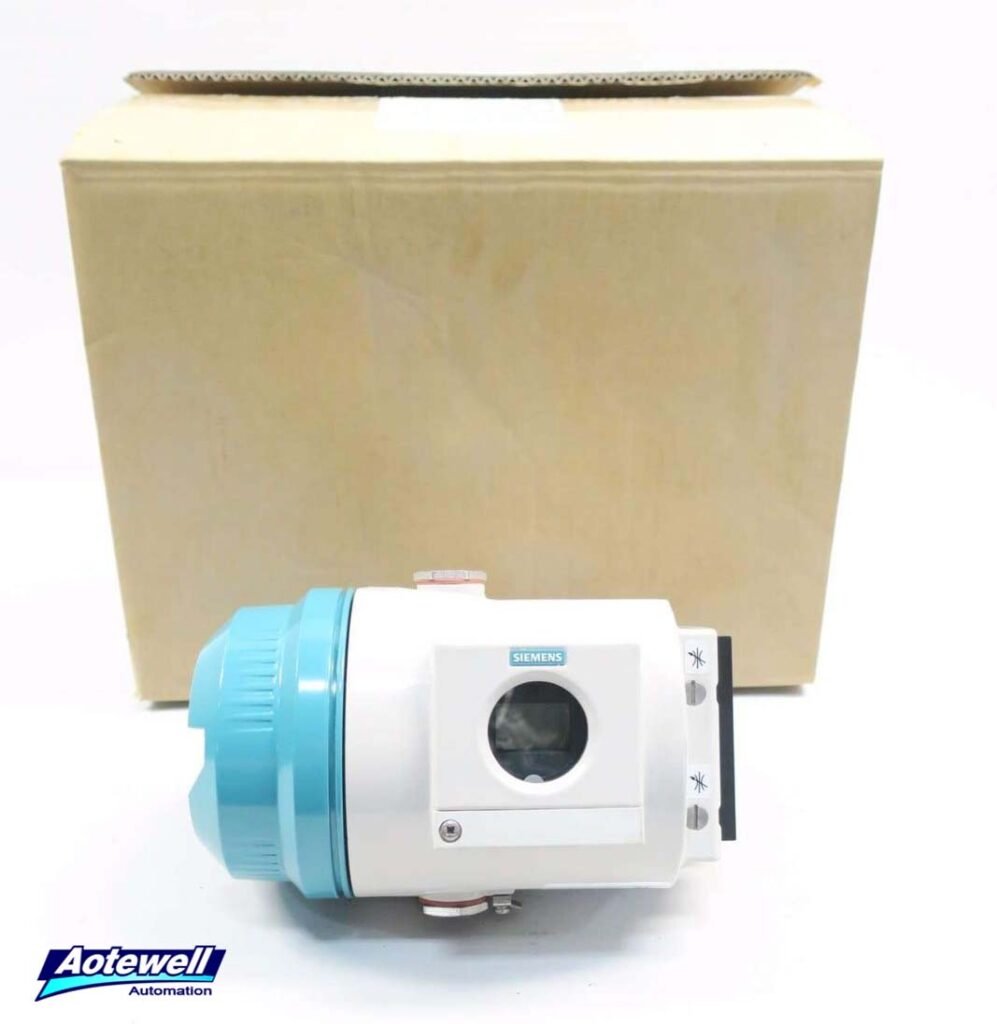

6DR5025-0EQ01-0AA0
SIPART PS2 Smart, electropneumatic positioner, 4…20mA, Ex/nEx, double-acting, aluminum enclosure, flameproof (Ex d), for pneumatic linear and part-turn actuators. Non-contacting (wear-free) position detection (NCS). Standard Type of protection (Ex): Flameproof enclosure (Ex d), Dust ignition protection by enclosure (Ex t). Connection thread el.: M25x1.5 / pneu.: G 1/4 Without limit monitor. Analog Output Module (AOM), analog position feedback 4 … 20 mA. Isolating power supply SITRANS I100 separately orderable (7NG4124-1AA00). . Brief instructions English / German / Chinese. Standard / Fail-Safe – Depressurizing the actuator in case of failure of electrical auxiliary power (single acting only). Without Manometer block / Venting gauge block / Booster.
| Item | Specification |
|---|---|
| Part Number | 6DR5025‑0EQ01‑0AA0 |
| Product Family | SIPART PS2 |
| Product Type | Smart Electropneumatic Positioner |
| Input Signal | 4…20 mA |
| Position Detection | Non‑contact wear‑free NCS position detection |
| Actuator Mode | Double‑acting |
| Housing Material | Aluminum enclosure |
| Explosion Protection | Flameproof enclosure Ex d; Dust ignition protection by enclosure Ex t |
| Electrical Connection Thread | M25×1.5 |
| Pneumatic Connection Thread | G 1/4 |
| Applicable Actuators | Pneumatic linear actuators, part‑turn actuators |
| Limit Monitor | Not equipped |
| On‑board Module | Analog Output Module (AOM), analog position feedback 4 … 20 mA |
| Isolating Power Supply | SITRANS I100 (7NG4124‑1AA00), separately orderable |
| Manometer / Venting gauge block / Booster | Not equipped |
| Fail‑Safe Feature | Depressurizing actuator upon auxiliary power failure (valid for single‑acting only) |
| Documentation | Brief instructions: English / German / Chinese |
| Warranty | 1 YEAR |
| Net Weight (kg) | 4.900 Kg |
| Packaging Dimension | Not available |
| Country of origin | Germany |
| Quantity Unit | 1 Piece |
