| Part Number |
6AG4112-3DT12-0JX1 |
| PN_SKU |
PNMX-00079154 |
| Full Model Name |

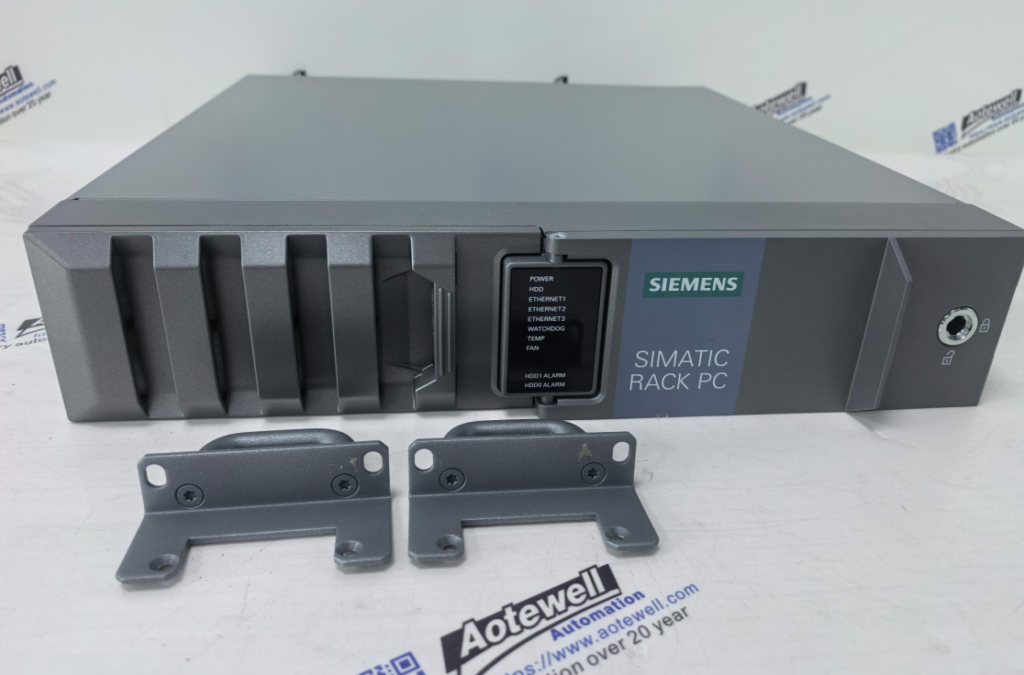

SIMATIC IPC647E 19-inch 2U Rack Industrial PC |
| Processor |
Intel Core i5-8500, 6 Core / 6 Thread, base 3.0 GHz, turbo 4.1 GHz, 9 MB cache, Turbo Boost, VT-D, AMT supported |
| System Memory |
16 GB DDR4 Dual Channel SDRAM (2 × 8 GB modules) |
| Internal Storage |
RAID 1 array, 2 × 480 GB 2.5-inch SATA industrial SSD |
| Internal Expansion Hardware |
1 internal M.2 slot; no additional external hardware expansions |
| PCIe Expansion Slots (Mainboard) |
2 PCIe x16 slots: 1 × PCIe x16 (16 lanes), 1 × PCIe x16 (4 lanes); equipped with card retainer |
| Rear Panel Interfaces |
3 × Gigabit RJ45 Ethernet (PROFINET/Industrial Ethernet); 1 × DVI-D; 2 × DisplayPort; 1 × COM1 RS232 serial; audio jacks; 4 × USB 3.1 Type-A; 2 × USB 3.1 Type-C |
| Front Panel Interfaces |
2 × USB 3.0 ports |
| Onboard Internal Interface |
1 × internal USB 3.1 port |
| System Monitoring Functions |
Temperature monitoring, fan speed monitoring, hardware watchdog timer |
| Chassis Type |
Type A drive support enclosure for front rack-mounted storage units |
| Power Supply |
100–240 V AC wide-range industrial PSU, European standard power cable included |
| Preinstalled Operating System |
Windows Server 2019 Standard 64-bit MUI multi-language; 5 client access licenses; supported languages: en, de, fr, it, es |
| Mechanical Form Factor |
Standard 19-inch rack-mount, 2U height |
| Product Lifecycle |
Active production model, available as new original unit & maintenance spare |
| Country of Origin |
Germany |
