| Full Article Number |
6AV7240-3DC04-3DA0 |
| Product Series |

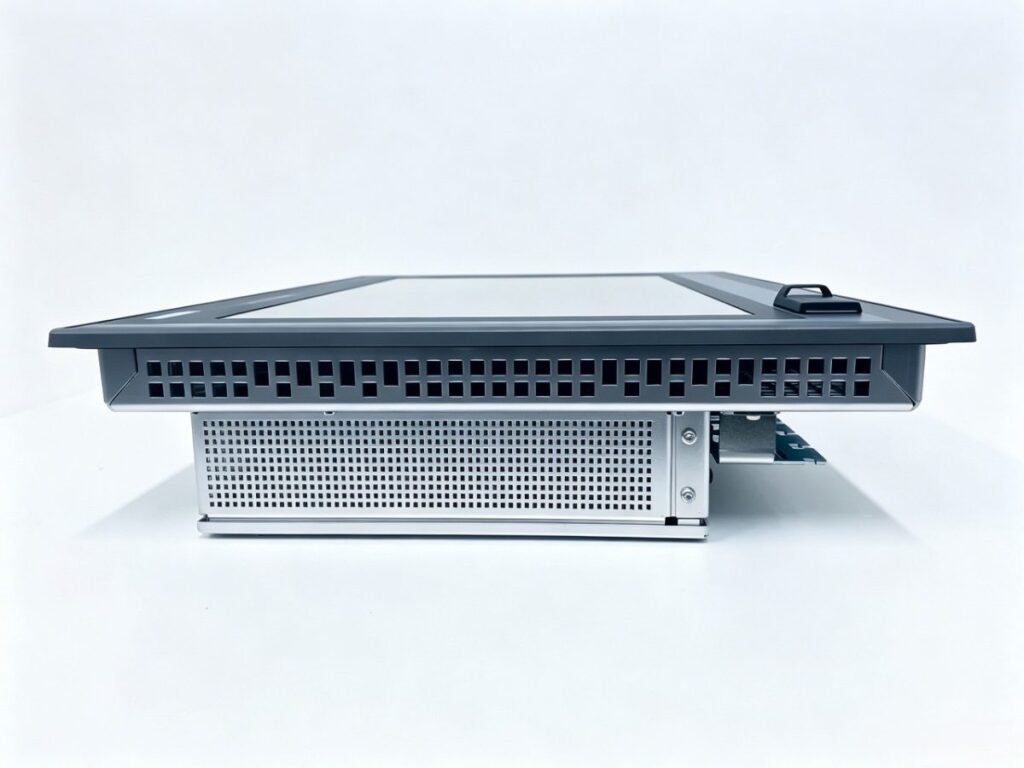

SIMATIC IPC 477D Panel Industrial PC |
| Display Spec |
19-inch analog resistive touch TFT, SXGA 1280×1024 |
| Processor |
Intel Core i3-3217UE (2C/4T, 1.6 GHz, 3 MB L3 cache) |
| System Memory |
4 GB DDR3 non-ECC RAM, max expandable to 8 GB |
| Storage Media |
No built-in drive bay; equipped with replaceable 8 GB CFast card |
| Integrated Ethernet Ports |
2×10/100/1000 Mbps industrial Ethernet (IE/PN) |
| PROFINET Function |
Supports PROFINET IRT real-time communication |
| USB Interfaces |
4×USB2.0 (rear panel), 1×USB2.0 (front panel) |
| Serial Interface |
1× isolated RS-232 port |
| Expansion Slot |
No PCIe expansion slot reserved |
| Pre-installed OS |
Windows Embedded Standard 7, 32-bit multi-language |
| SIMATIC Software |
No pre-installed SIMATIC automation software |
| Power Supply |
DC 24 V SELV industrial power, range DC19.2–28.8 V |
| Typical Power Consumption |
Approx. 38 W |
| Mechanical Cutout Size |
W463 mm × H292 mm cabinet panel cutout |
| Overall Dimension (W×H×D) |
483 mm × 312 mm × 76 mm |
| Net Weight |
Approx. 6.4 kg |
| Front Panel Protection |
IP65 / NEMA 4X for cabinet embedded installation |
| Rear Terminal Protection Class |
IP20 |
| Continuous Operating Temp |
0 °C ~ +45 °C full load operation |
| Storage & Transport Temp |
-25 °C ~ +70 °C |
| Relative Humidity |
5%–80% RH, no condensation |
| Vibration Resistance |
IEC 60068-2-6: 5–500 Hz, 9.8 m/s² (with CFast) |
| Shock Resistance |
IEC 60068-2-27: 150 m/s², 11 ms |
| Built-in Graphics |
Intel HD integrated graphics controller |
| Certifications |
CE, UL, cULus, FCC, GL marine certification, RoHS 2.0 |
