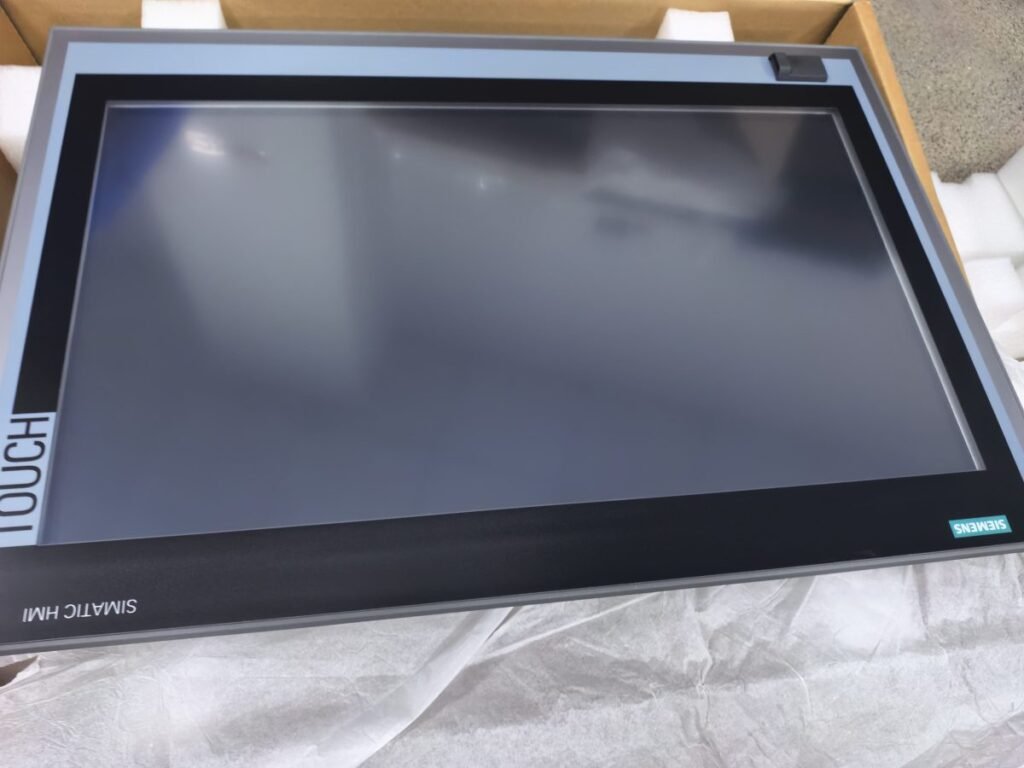

SIMATIC IPC 477D, 19″ touch display; 4 USB (back)+1 USB (front), Ethernet (10/100/1000); Core I3-3217UE; 2x Gbit Ethernet (IE/PN); 4 GB; 1x RS-232; without PCIE; Windows 7 Ultimate, 32-bit; Replaceable without drive; SSD 80 GB Standard (MLC); W/O SIMATIC SOFTWARE; 24 V DC industrial power supply
| Item | Specification |
|---|---|
| Part Number | 6AV7240‑3DC06‑0HA0 |
| Product Family | SIMATIC IPC477D |
| Product Type | Fan‑less Industrial Panel PC |
| Display | 19″ TFT Multi‑Touch (Projective‑capacitive) |
| Resolution | 1280 × 1024 SXGA |
| Processor | Intel Core i3‑3217UE, 1.6 GHz dual‑core |
| Main Memory | 4 GB DDR3 |
| Storage | 80 GB MLC SSD, drive‑replaceable without tools |
| Operating System | Windows 7 Ultimate 32‑bit |
| Expansion Slot | Without PCIe slot |
| On‑board Interfaces | PROFIBUS‑DP, 2×Gigabit Ethernet IE/PN, 4×USB (rear), 1×USB (front), 1×RS‑232 |
| Power Supply | 24 V DC (19.2‑28.8 V) |
| Max Power Consumption | 65 W |
| Cooling | Fan‑less passive cooling |
| Front Protection Grade | IP65 |
| Rear Protection Grade | IP20 |
| Mounting | Panel mounting for cabinet cut‑out |
| Operating Temperature | 0 ℃ ~ +50 ℃ |
| Storage Temperature | -20 ℃ ~ +65 ℃ |
| Relative Humidity | 5 %‑85 %, non‑condensing |
| Vibration Resistance | 1 g IEC 60068‑2‑6 |
| Shock Resistance | 5 g IEC 60068‑2‑27 |
| Net Weight | 6.4 kg |
| Cut‑out Dimension | 483 mm × 382 mm |
| Overall Dimension | 500 mm × 398 mm × 89 mm |
| Certifications | CE, UL, cUL, RoHS |
| Country of Origin | Germany |
| Customs Tariff Number | 84715000 |
The 6AV7240‑3DC06‑0HA0 belongs to SIMATIC IPC477E series, a robust industrial panel PC combining display, touch operation and industrial computing unit in one compact device. It features 19‑inch widescreen multi‑touch screen for intuitive operator interaction. Integrated PROFIBUS‑DP interface enables direct connection to Siemens PLC systems without extra communication cards. Designed for continuous 24‑7 operation under factory‑floor conditions, this unit adopts fan‑optimized thermal design to reduce mechanical failure risk.
The IPC477E supports Windows operating system, compatible with WinCC, TIA Portal and third‑party SCADA software. Rugged front panel meets high‑grade protection standard at front side, resisting dust, splashing liquid and mechanical impact. Rich onboard interfaces include Ethernet, USB, serial ports together with native PROFIBUS‑DP. It can execute HMI visualization, data logging, recipe management and lightweight process control tasks. Conceived for cabinet front‑mount installation, it fits standard control cabinet cut‑out. Industrial grade components ensure stable runtime in wide temperature range for manufacturing sites.
