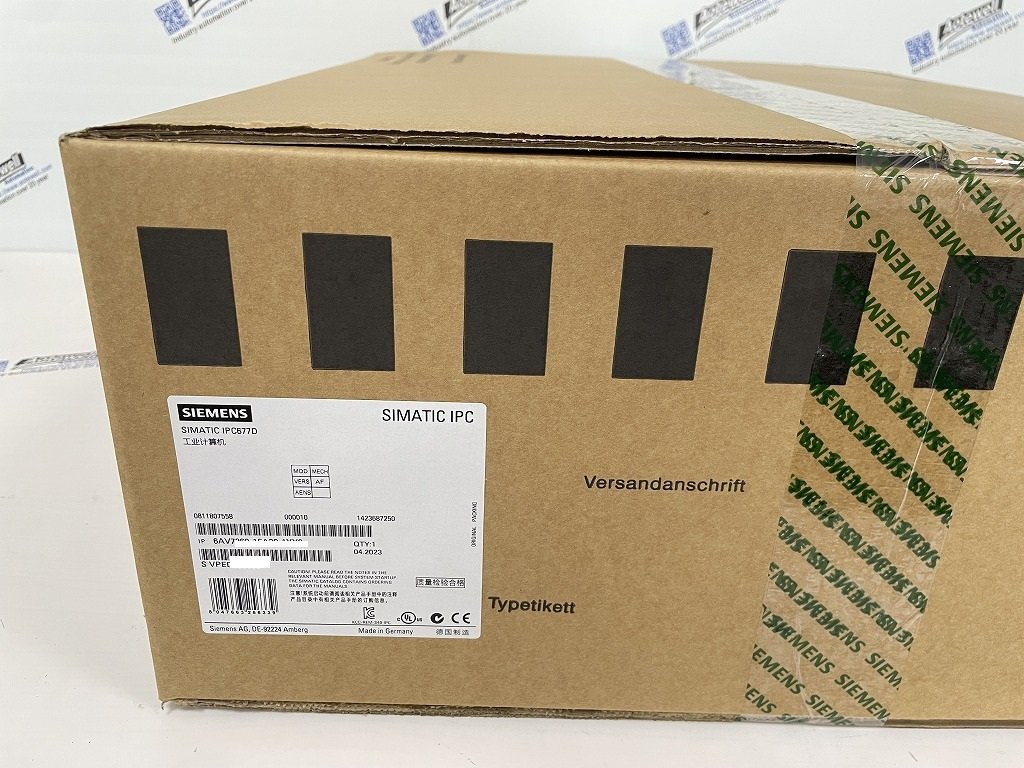

6AV7260-0AA22-0EX0
SIMATIC IPC677D (Panel PC), 2×10/100/1000 Mbit/s Ethernet; 4x USB V3.0, 1x serial (COM1); Watchdog, temperature and Fan monitoring; RAID controller onboard; 15″ Touch (1280x 800); with front USB Celeron G1820TE (2C/2T, 2.2 GHz, 2 MB cache) 500 GB HDD SATA; 4 GB DDR3 1600 DIMM; 1x PCIE (X16); 1x PCIE (X4) without expansion (HW) Windows 10 Enterprise LTSB 2016, 64 bit, MUI (en, de, fr, it, es) for Celeron and I3; without expansion (software) AC 110/230V industrial power supply unit with NAMUR; Power supply cable Europe
| Product | |
| Article Number (Market Facing Number) | 6AV7260-0AA22-0EX0 |
| Product Description | SIMATIC IPC677D (Panel PC), 2×10/100/1000 Mbit/s Ethernet; 4x USB V3.0, 1x serial (COM1); Watchdog, temperature and Fan monitoring; RAID controller onboard; 15″ Touch (1280x 800); with front USB Celeron G1820TE (2C/2T, 2.2 GHz, 2 MB cache) 500 GB HDD SATA; 4 GB DDR3 1600 DIMM; 1x PCIE (X16); 1x PCIE (X4) without expansion (HW) Windows 10 Enterprise LTSB 2016, 64 bit, MUI (en, de, fr, it, es) for Celeron and I3; without expansion (software) AC 110/230V industrial power supply unit with NAMUR; Power supply cable Europe |
| Series name | SIMATIC IPC677D |
| Panel PC | |
| Size | 15″ Touch |
| Resolution ratio | 1280x 800 |
| Processor type/CPU | Celeron G1820TE |
| Memory capacity | 4 GB DDR3 1600 DIMM |
| Harddisk | 500 GB HDD SATA |
| Operating system/OS | Windows 10 Enterprise LTSB 2016, 64 bit, MUI |
| Network Interface | 2×10/100/1000 Mbit/s Ethernet |
| Other interface | 4x USB V3.0, 1x serial (COM1) |
| Power supply | AC 110/230V |
| Programming software | without |
| Warranty | 1 year |
| Net Weight (kg) | 17.000 Kg |
| Packaging Dimension | Not available |
| Country of origin | Germany |
| Quantity Unit | 1 |
| Additional Product Information | |
| EAN | Not available |
| UPC | Not available |
| Commodity Code | 84714100 |
| LKZ_FDB/ CatalogID | ST80.1U |
| Product Group | 4385 |
| Group Code | R133 |
