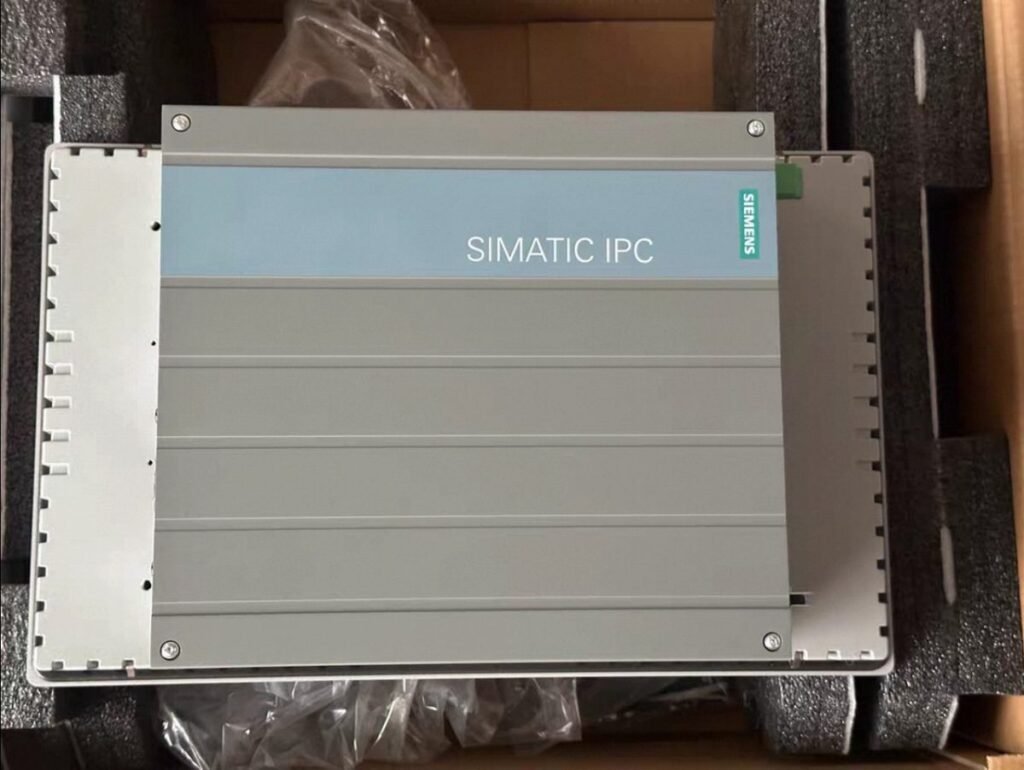

6AV7261-0BK22-0AB0
SIMATIC IPC677E(Panel PC), 19″ Multitouch (1920×1080); UHD graphic onboard; DP/DVI-D; 3x Gigabit Ethernet (IE/PN); 6x USB 3.1 Gen. 2; 1x serial (COM 1); RAID controller onboard; Watchdog, temperature and fan monitoring; Celeron G4900 (2C/2T, 3.1 GHz, 2 MB cache; VT-d); NVRAM; M.2 SSD NVMe 512 GB; HDD 2.5″ SATA 320 GB internal; 16 GB DDR4-2666 (2×8); 110/230 V AC industrial power supply unit With NAMUR; Power supply cable Europe; Windows 10 Enterprise 2016 LTSB, 64 bit, MUI (en, de, fr, it, es) For Celeron and Core i3; Without extension (software); 2x USB 2.0 (1 slot occupied); 2x PCI
| Parameter Item | Specification |
|---|---|
| Order Code | 6AV7261-0BK22-0AB0 |
| Device Model | SIMATIC IPC677E Industrial Panel PC |
| Display | 19-inch multitouch screen, 1920×1080 resolution |
| Onboard Graphics | Integrated UHD graphics |
| External Video Ports | DP + DVI-D |
| Network Interfaces | 3 × Gigabit Industrial Ethernet / PROFINET |
| USB Ports | 6 × USB 3.1 Gen 2, 2 × USB 2.0 (1 slot occupied) |
| Serial Interface | 1 × COM1 serial port |
| Storage Controller | Onboard RAID controller |
| System Monitoring | Watchdog timer, temperature & fan monitoring, NVRAM |
| Processor | Intel Celeron G4900, 2C/2T, 3.1 GHz, 2 MB cache, VT-d supported |
| Internal Storage | 512 GB NVMe M.2 SSD + 320 GB 2.5″ SATA HDD |
| System Memory | 16 GB DDR4-2666 (2 × 8 GB modules) |
| Power Supply | 110/230 V AC industrial PSU with NAMUR, EU power cable included |
| Operating System | Windows 10 Enterprise 2016 LTSB 64-bit MUI (EN/DE/FR/IT/ES) |
| Software Scope | No extended optional software included |
| Expansion Slots | 2 × PCI slots |
