6ES7660-7DA31-2AA0

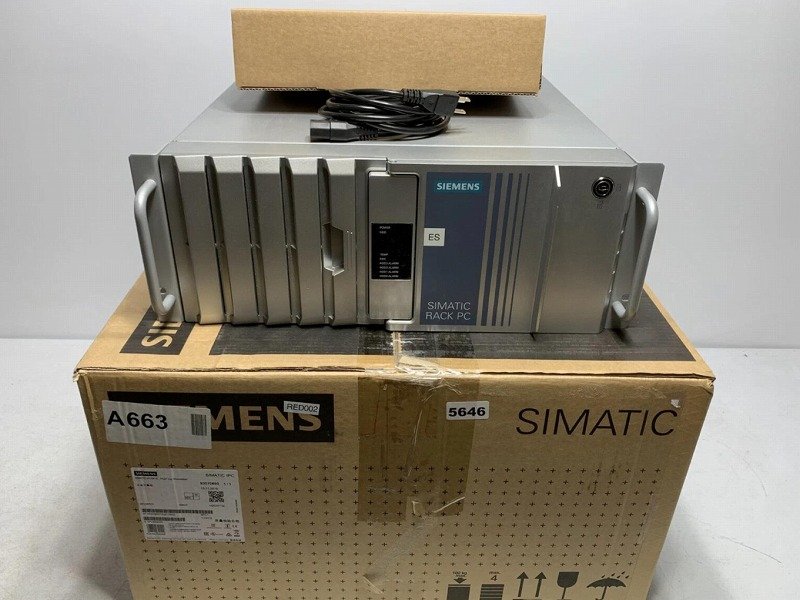

SIMATIC PCS 7 Industrial Workstation IPC547G (rack PC, 19″, 4 U), interfaces: 2x Gbit Ethernet (RJ45); 1x DVI-D; 2x Display Port V1.2 1x COM; 2x PS/2; audio; 2x USB 3.0 on the front, 4x USB 3.0 & 4x USB 2.0 on the rear side; 1x USB 2.0 internal; 7 slots: 5X PCI Express, 2x PCI; temperature and fan monitoring, watchdog, card retainer; Core I7-6700 (4C/8T, 3.4(4.0) GHz), 8 MB cache); MB (Chipset C236) – ES/OS Single Station 1×1 TB HDD, internal (0.2g vibration, 1g shock); 32 GB DDR4 SDRAM (2x 16 GB), Dual channel; Industrial Ethernet (CP1623) PCS 7 V8.2 SP1 pre-installed Windows 7 Ultimate, 64 bit, MUI (en, de, fr, it, es, cn) enclosure blue chromated, without optical drive, incl. 1xDP according to DVI-D Cable adapter 100/240V AC industrial power supply unit; without line cable
| Product | |
| Article Number (Market Facing Number) | 6ES7660-7DA31-2AA0 |
| Product Description | SIMATIC PCS 7 Industrial Workstation IPC547G (rack PC, 19″, 4 U), interfaces: 2x Gbit Ethernet (RJ45); 1x DVI-D; 2x Display Port V1.2 1x COM; 2x PS/2; audio; 2x USB 3.0 on the front, 4x USB 3.0 & 4x USB 2.0 on the rear side; 1x USB 2.0 internal; 7 slots: 5X PCI Express, 2x PCI; temperature and fan monitoring, watchdog, card retainer; Core I7-6700 (4C/8T, 3.4(4.0) GHz), 8 MB cache); MB (Chipset C236) – ES/OS Single Station 1×1 TB HDD, internal (0.2g vibration, 1g shock); 32 GB DDR4 SDRAM (2x 16 GB), Dual channel; Industrial Ethernet (CP1623) PCS 7 V8.2 SP1 pre-installed Windows 7 Ultimate, 64 bit, MUI (en, de, fr, it, es, cn) enclosure blue chromated, without optical drive, incl. 1xDP according to DVI-D Cable adapter 100/240V AC industrial power supply unit; without line cable |
| Series name | SIMATIC PCS 7 |
| Industrial Workstation IPC547G | |
| rack PC | |
| Size | 19″ |
| Processor type/CPU | Core I5-6500 |
| Memory capacity | 16 GB DDR4 SDRAM |
| Dual channel | |
| Operating system/OS | Windows 7 Ultimate, 64 bit, MUI |
| Network Interface | 2x Gbit Ethernet (RJ45) |
| Other interface | 1x DVI-D; 2x Display Port V1.2 1x COM; 2x PS/2; audio; 2x USB 3.0 on the front, 4x USB 3.0 & 4x USB 2.0 on the rear side; 1x USB 2.0 internal; 7 slots: 5X PCI Express, 2x PCI |
| Power supply | 100/240V AC |
| Warranty | 1 year |
| Net Weight (kg) | 15.000 Kg |
| Packaging Dimension | Not available |
| Country of origin | Germany |
| Quantity Unit | 1 Piece |
| Packaging Quantity | 1 |
| Additional Product Information | |
| EAN | Not available |
| UPC | Not available |
| Commodity Code | 84715000 |
| LKZ_FDB/ CatalogID | STPCS7 |
| Product Group | 4519 |
| Group Code | R1TP |
