6ES7661-1KC42-1RE1

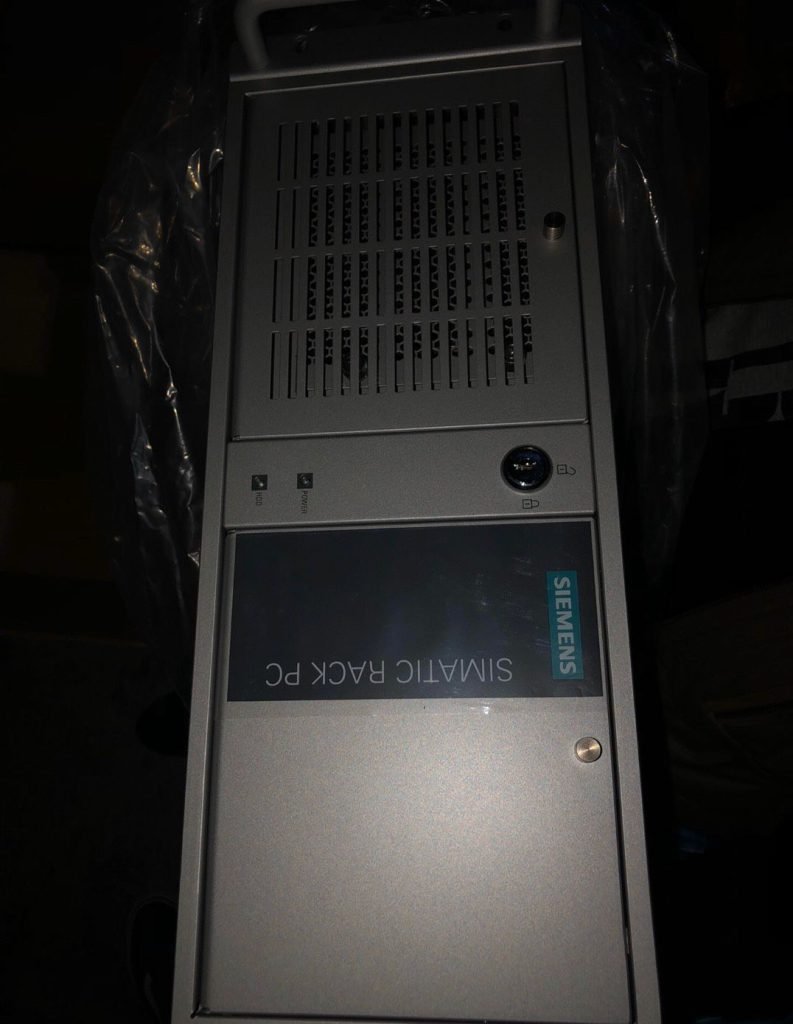

Image similar
SIMATIC Process Control System IPC847E; (Rack PC, 19, 4U), Interfaces: 3x Gbit LAN (RJ45), 1x DVI-D, 2x Display Port; 1x COM, Audio; 4x USB3.1 Gen2 (Type A); 2x USB3.1 (Type C) backside; 2x USB3.1 (Type A) frontside; 1x USB3.1 (Type A) internal; Temperature and fan monitoring, Watchdog, card retainer; Xeon E-2176G (6C/12T, 3.7 (4.7) GHz, 12 MB cache, TB, AMT) – PCS 7 OS server, engineering server, web server; RAID1, 2x 1 TB HDD [Enterprise] 3.5 SATA; drive support for rack units on the front; 32 GB DDR4 SDRAM (2x 16 GB), Dual Channel; PCS 7 V9.1 pre-installed; Windows Server 2019 standard edition including 16 cores, 5 clients, 64-bit, MUI (en, de, fr, it, sp, zh), with restore USB flash drive; bus module 11 slots: 3x PCI, 1x PCIe x16 (8 L), 5x PCIe x16 (4 L), 2x PCIe x4 (4 L), Industrial Ethernet (CP1623), (1 slot occupied); 100/240 V AC industrial power supply unit, power supply cord Europe
| Product | |
| Article Number (Market Facing Number) | 6ES7661-1KC42-1RE1 |
| Product Description | SIMATIC Process Control System IPC847E; (Rack PC, 19, 4U), Interfaces: 3x Gbit LAN (RJ45), 1x DVI-D, 2x Display Port; 1x COM, Audio; 4x USB3.1 Gen2 (Type A); 2x USB3.1 (Type C) backside; 2x USB3.1 (Type A) frontside; 1x USB3.1 (Type A) internal; Temperature and fan monitoring, Watchdog, card retainer; Xeon E-2176G (6C/12T, 3.7 (4.7) GHz, 12 MB cache, TB, AMT) – PCS 7 OS server, engineering server, web server; RAID1, 2x 1 TB HDD [Enterprise] 3.5 SATA; drive support for rack units on the front; 32 GB DDR4 SDRAM (2x 16 GB), Dual Channel; PCS 7 V9.1 pre-installed; Windows Server 2019 standard edition including 16 cores, 5 clients, 64-bit, MUI (en, de, fr, it, sp, zh), with restore USB flash drive; bus module 11 slots: 3x PCI, 1x PCIe x16 (8 L), 5x PCIe x16 (4 L), 2x PCIe x4 (4 L), Industrial Ethernet (CP1623), (1 slot occupied); 100/240 V AC industrial power supply unit, power supply cord Europe |
| Series name | IPC847E |
| Rack PC | |
| Size | 19″ |
| Processor type/CPU | Xeon E-2176G |
| Memory capacity | 32 GB DDR4 SDRAM |
| Dual Channel | |
| Harddisk | 2x 1 TB HDD |
| Operating system/OS | Windows Server 2019 |
| Network Interface | Industrial Ethernet (CP1623) |
| Power supply | 100/240 V AC |
| Programming software | without |
| Warranty | 1 year |
| Net Weight (kg) | 17.000 Kg |
| Packaging Dimension | Not available |
| Country of origin | Germany |
| Quantity Unit | 1 Piece |
| Packaging Quantity | 1 |
| Additional Product Information | |
| EAN | Not available |
| UPC | 195125404304 |
| Commodity Code | 84715000 |
| LKZ_FDB/ CatalogID | STPCS7 |
| Product Group | 4209 |
| Group Code | R336 |
