| MLFB Code |
6BK1800-8HR03-0AA0 |
| Product Line |

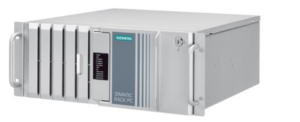

SIMATIC IPC847E Industrial Edge Rack PC |
| Form Factor |
19-inch rack mount, 4HU (4U), tool-free service fan, cabinet size 481.4×176.6×446.6mm |
| Processor |
Intel Xeon E-2278GE, 8C/16T, Base 3.3GHz, Turbo 4.7GHz, 16MB cache, AMT/VT-d/Intel Boot Guard |
| Chipset |
Intel C246 industrial chipset |
| Memory |
Max. 128GB ECC DDR4 dual-channel; ECC exclusive for Xeon CPU models |
| Security Hardware |
Onboard TPM 2.0 chip, mandatory Secure Boot, full disk encryption support |
| Built-in Storage |
960GB high-end SATA enterprise SSD; supports hot-swap RAID 0/1/5 expansion |
| Front I/O |
2×USB3.1 Gen1 Type-A, power button, multi-state diagnostic LED array |
| Rear I/O |
3×Isolated Gigabit RJ45 (Profinet/IE compatible, 1 port AMT-enabled), 1×DVI-D, 2×DP1.4, 1×RS232 COM1, audio jacks, 4×USB3.1 Gen2 A, 2×USB3.1 Gen2 Type-C |
| Internal Interface |
1×USB3.1 Gen2 internal port for security dongles |
| Expansion Slots (11 total, verified) |
3×PCI, 1×PCIe x16 (8 lanes), 5×PCIe x16 (4 lanes), 2×PCIe x4 (4 lanes) |
| System Monitoring |
Real-time fan speed, temperature detection, hardware watchdog timer, anti-vibration card retainer bracket |
| Power Unit |
Standard single 100–240V wide-range AC industrial PSU (290W max), redundant PSU optional upgrade |
| Preloaded Software |
Hardened Industrial Edge dedicated firmware, Windows 10 IoT Enterprise 2019 LTSC multi-language OS |
| Environmental Spec |
Operating temp: 0°C to 40°C (condensation-free); shock/vibration compliant with IEC 60068-2-27/-29 (5g shock, 0.5g vibration) |
| Certifications |
CE, UL/cULus, RCM, global industrial standard approvals |
| Weight |
15–23kg (varies by expansion hardware) |
| Core Positioning |
Industrial Edge computing server, high-performance process control workstation, machine vision host, central factory data acquisition unit |
| Lifecycle |
Active supply 3–6 years, minimum 5-year spare part availability post discontinuation |
