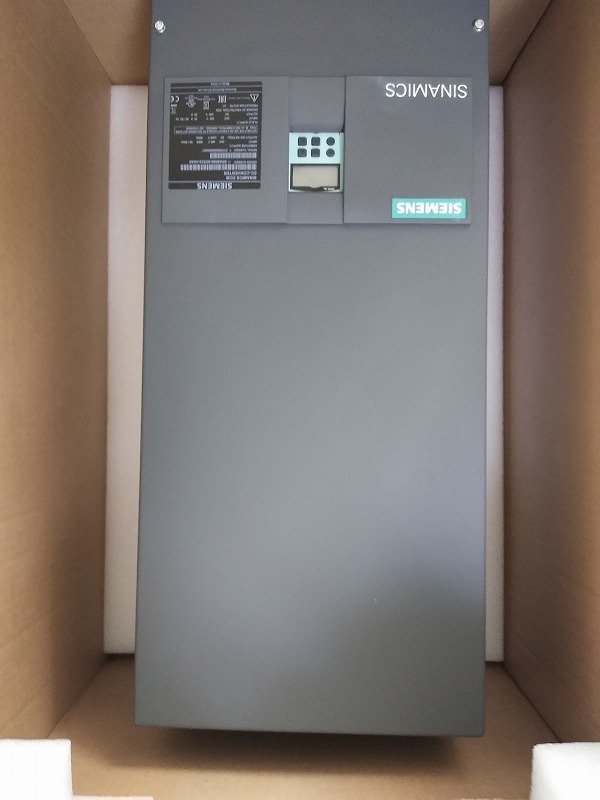

6RA8085-6FS22-0AA0
| Product | |
| Article Number (Market Facing Number) | 6RA8085-6FS22-0AA0 |
| Product Description | SINAMICS DCM DC converter for two-quadrant drives B6C connection Input: 480V 3AC, 498A controllable: Field rectifier D575/600 MRE-GEEF6S22 Output: 575 V DC, 600A |
| Product family | SINAMICS DCM DC converter |
| Warranty | 1 YEAR |
| Output frequency for V/f control |
|
| Net Weight (kg) | 31,000 Kg |
| Packaging Dimension | 380,00 x 765,00 x 420,00MM |
| Country of origin | China |
| Quantity Unit | 1 Piece |
| Packaging Quantity | 1 |
| Power range | 5 to 24,000 HP (6.3 – 18,000 kW) |
| Rated DC current | 15 to 3,000 A (single converter) |
| Rated supply voltage | 3-ph. 85 to 950 V AC |
| Rated field DC current | 3 to 40 A (optional: 85 A) |
| Rated frequency | 45 to 65 Hz |
| Degree of protection | IP00 |
| Storage and transport temperature | -40 to +70 °C |
| Standards | IEC, EN, DIN, VDE, UL, cULus, NEMA, UL 508 C, GOST |
| Operation | 2Q and 4Q |
| Connection options for the following rated supply voltages of the armature circuit Power section | 3 AC 50 / 125 / 250 / 575 / 1000 V |
| Rated supply voltages | DC 24 V (DC 18 up to 30 V); In = 5 A |
| Electronics supply | |
| Rated supply voltages field | 2 AC 480 V (+10 / -20 %) |
| Power range | 6.3 kW up to 30 MW |
| Rated direct current | 15 up to 3000 A |
| Rated supply voltage | 3 AC 400 up to 950 V |
