| Category | Verified Specification for 6SE7016-0TP70 |
|---|---|
| MLFB Order Code | 6SE7016-0TP70 |
| Full Name | SIMOVERT MASTERDRIVES Motion Control, Compact Plus Inverter Unit |
| Brand | Siemens |
| Country of Origin | Germany |
| DC Link Supply Voltage | 510 VDC … 650 VDC |
| Rated Power | 2.2 kW |
| Rated Output Current | 6.1 A |
| Enclosure Rating | IP20, cabinet installation only |
| Product Version | Performance 2, Compact Plus Unit |
| Control Technology | Vector Control / Servo control for Motion applications |
| Included Accessories | Documentation CD supplied together |
| Communication Options | Supports CUVC control unit; optional Profibus DP, SIMOLINK, Serial interface modules |
| Output Frequency Range | 0–600 Hz |
| Cooling Mode | Internal forced air cooling |
| Mechanical Dimensions | W 105 mm × H 350 mm × D 280 mm |
| Net Weight | Approx. 9.5 kg |
| Mounting | Vertical cabinet wall mounting |
| Operating Environment | Operating temperature: 0 °C … +40 °C full rating; derating above 40°C
Storage temperature: -40 °C … +70 °C Humidity: 5–95% non‑condensing, Pollution Degree 2 |
| Certifications | CE, UL/cULus compliant |
| Lifecycle Status | Obsolete / End of production, only available as legacy spare part |
| Warranty | 1 Year standard manufacturer warranty |

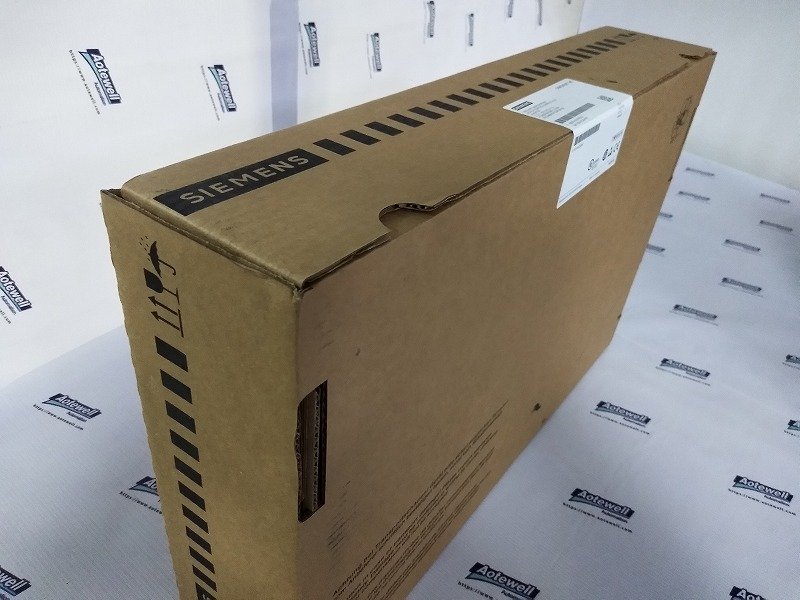

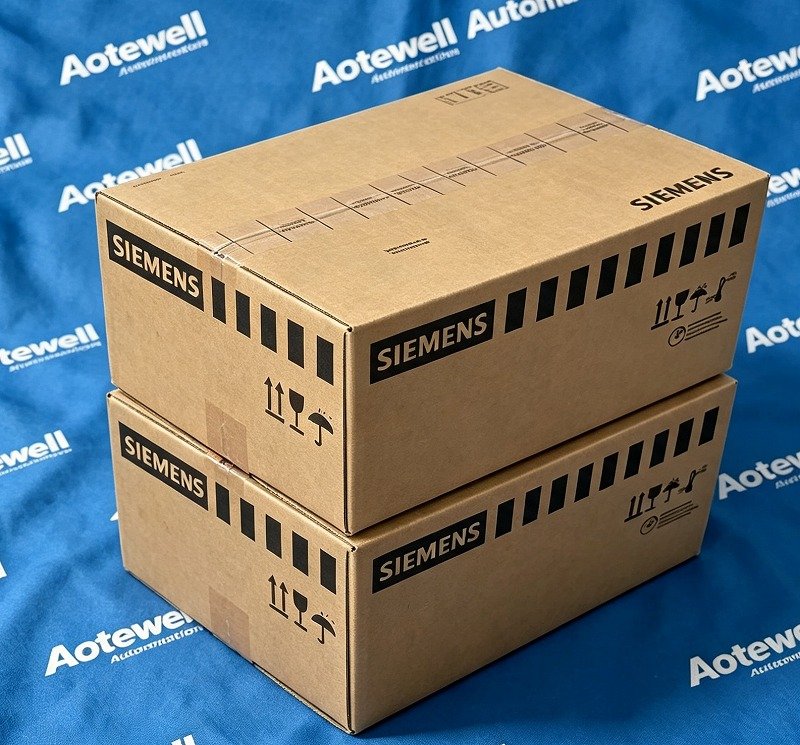

| Packaging Note | Original single-unit carton; official datasheet does not publish exact outer carton dimensions. |
