| Basic Product Information |
MLFB Order Code |

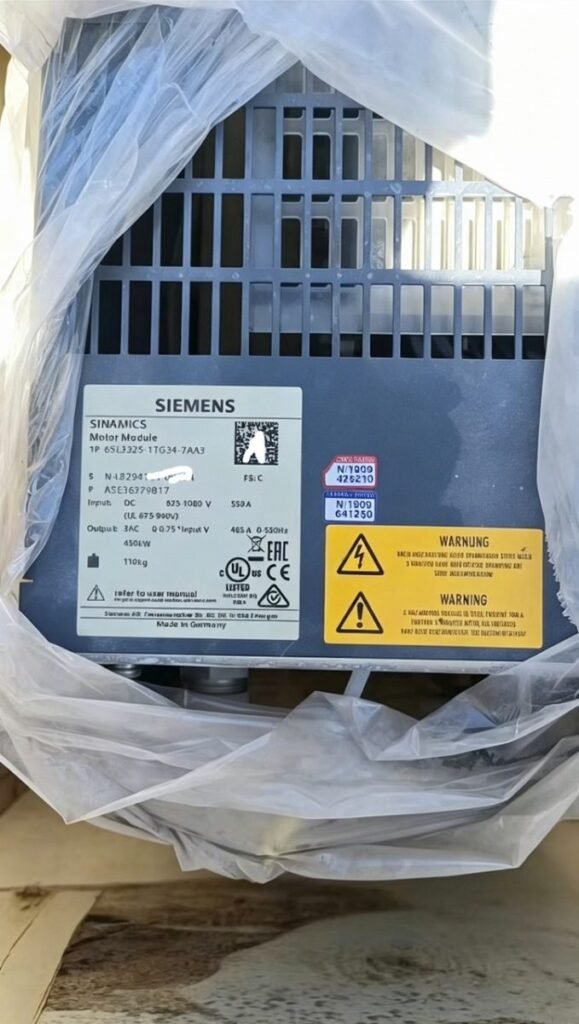

6SL3325-1TG34-7AA3 |
|
Product Series |
SINAMICS S120 |
|
Device Type |
Liquid-cooled Single Motor Module (Chassis Format) |
|
Frame Size |
HXL |
|
Country of Origin |
Germany |
|
Cooling Method |
Closed-loop Liquid Cooling (Integrated Aluminum Heat Exchanger) |
|
Protection Class |
IP00 (For cabinet internal installation only) |
|
System Voltage Class |
690 V AC motor system |
| DC Link Input Electrical Specifications |
DC Link Input Voltage Range |
675～1035 VDC (Matching 690V line rectifier unit) |
|
Rated DC Input Current |
558 A |
|
Auxiliary Control Supply |
24 VDC |
| 3-Phase AC Motor Output Specifications |
Rated Output Power |
450 kW |
|
Rated Output Current |
465 A |
|
Output Voltage Range |
0～690 V 3-Phase AC |
|
Output Frequency Range |
0～550 Hz |
|
Standard Pulse Frequency |
1.25 kHz |
|
Maximum Pulse Frequency |
7.5 kHz (Derating required at high frequency operation) |
| Dimensions & Weight |
Overall Width |
265 mm |
|
Overall Height |
1002 mm |
|
Overall Depth |
545 mm |
|
Net Weight |
110 kg |
| Liquid Cooling System Parameters |
Coolant Port Thread |
G3/4″ ISO Standard Pipe Thread |
|
Standard Coolant |
Deionized water + Ethylene Glycol Antifreeze |
| Communication & Terminal Specifications |
High-speed Communication Interfaces |
3 × DRIVE-CLiQ Interfaces |
|
Power Terminal Type |
M12 Busbar Terminals (DC Link, Motor, PE Ground) |
| Integrated Protection Functions |
Output Short-circuit Protection |
Yes |
|
Earth Fault Protection |
Yes |
|
Module Over-temperature Protection |
Yes |
|
Overvoltage/Undervoltage Protection |
Yes |
|
Overload Current Monitoring |
Yes |
|
Coolant Flow & Temperature Monitoring |
Yes |
| Environmental & Compliance Specifications |
Operating Temperature Range |
0℃～+60℃ (Full power without derating with liquid cooling) |
|
Storage Temperature Range |
-25℃～+70℃ |
|
Relative Humidity |
5%～95% (Non-condensing) |
|
Compliance Certifications |
CE, UL, cULus, EAC, RoHS |
