| Parameter Item | Technical Specification |
|---|---|

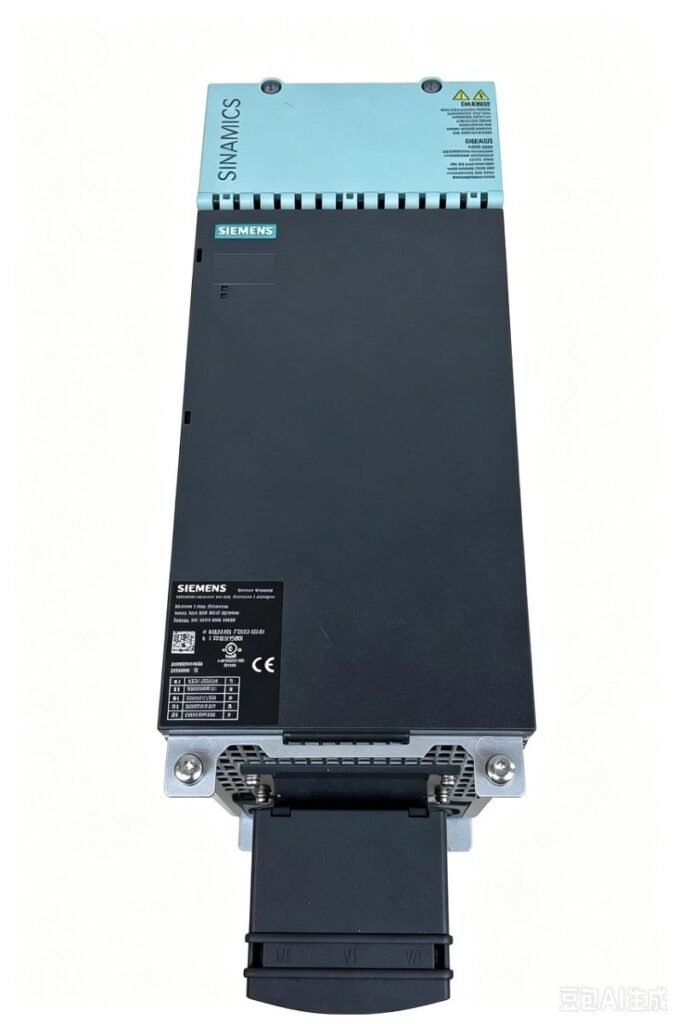

| Part Number | 6SL3130-7TE23-6AA3 |
| Product Series | SINAMICS S120 |
| Module Type | Active Line Module (ALM) |
| Rated Infeed Power | 36 kW (380V 3AC) |
| Max S6 Duty Power | 47 kW |
| Peak Regenerative Power | 70 kW |
| Mains Input | 3AC 380–480 V, 47–63 Hz |
| Rated Input Current | 58 A |
| DC Link Output | 600 V DC, rated 60 A |
| S6 DC-link Current | 79 A |
| Cooling Mode | Internal air cooling |
| Frame Format | Booksize |
| Communication | DRIVE-CLiQ, matched S120 CU units |
| Protection Class | IP20 (cabinet installation) |
| Operating Temp. | 0℃ ~ +40℃, derate up to 55℃ |
| Dimension (W×H×D) | 150 × 300 × 270 mm |
| Net Weight | 10.7 kg |
| Origin | Germany |
| Standard Certifications | CE, UL, cULus, RoHS, EN 61800-3 |
| Delivery Cycle | 15 working days |
| Lifecycle Status | PM300 Active Product |
